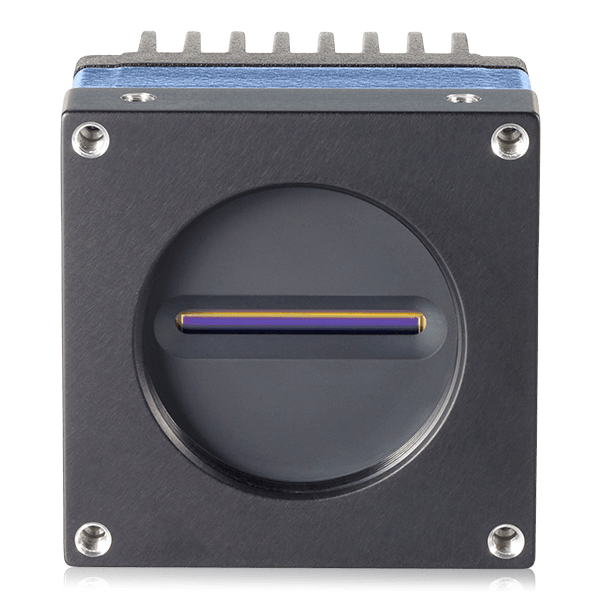

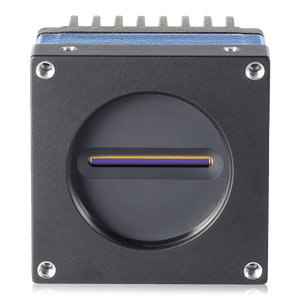

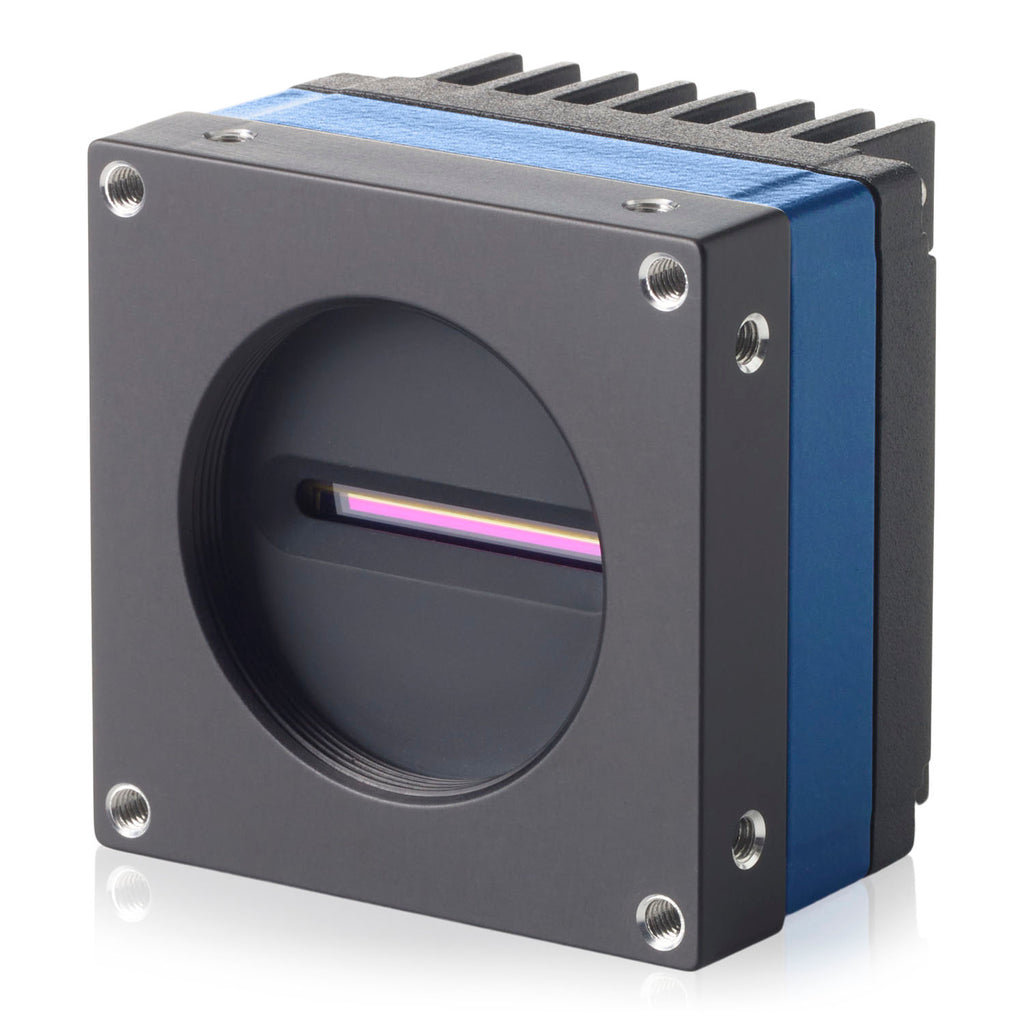

Teledyne Linea2 Multispectral 5GigE L2-GC-04K03N-00
Highlighted
- Part Number
- L2-GC-04k03N-00
- Resolution
- 4096 x 4
- Max Line Rate
- 30 kHz
- Sensor Model
- Teledyne e2v
- Pixel Size
- 7
- Sensor Type
- CMOS
- Shutter type
- Global shutter
- Spectrum
- Color & NIR-enhanced
- Optical Filter
- None

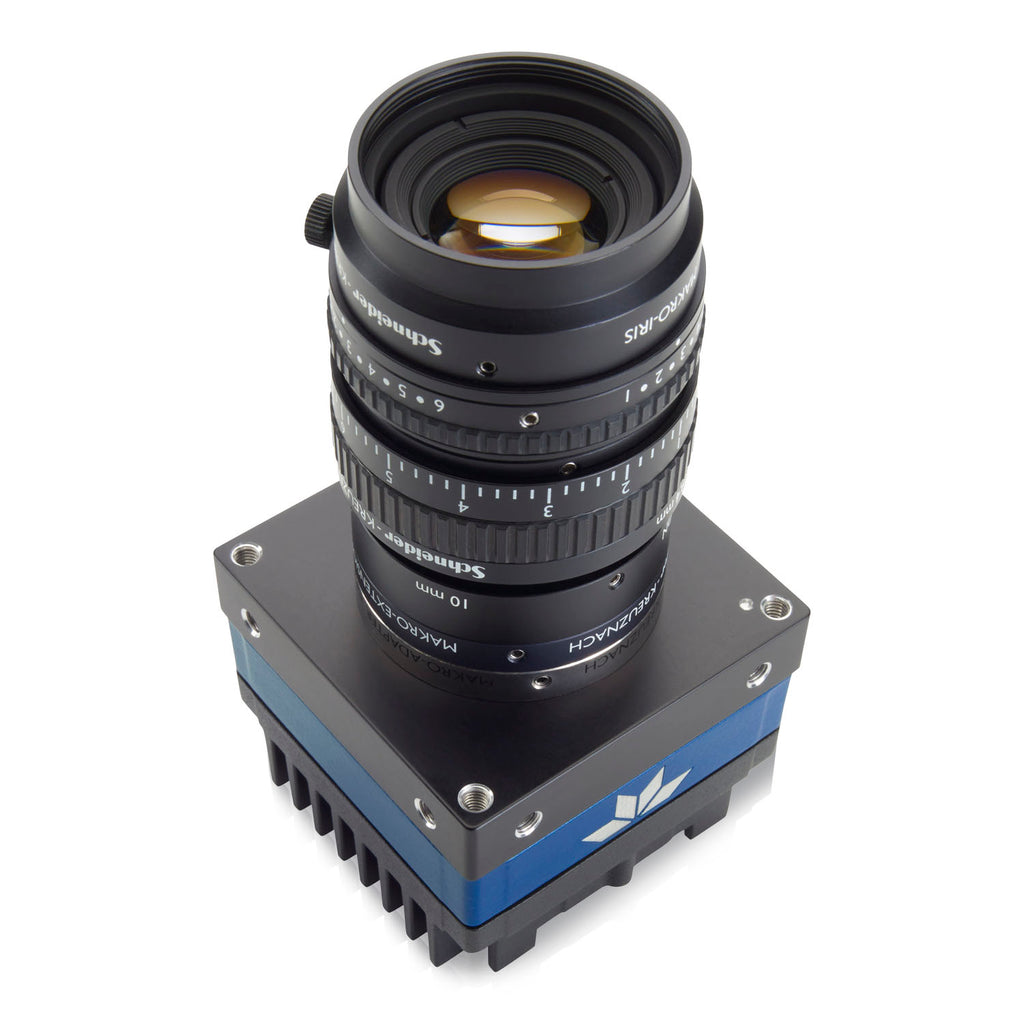

- Lens Mount
- M42 x 1 mm
- Synchronization
- Image sync: Free-running, software & hardware trigger, action command | Timestamp Sync: PTP (IEEE1588)
- Data Interface
- Gigabit Ethernet 5 Gbps / 2.5 Gbps / 1 Gbps
- Protection
- IP30
Features
- Acquisition Modes
- Continuous / Single Frame
- Exposure Control
- Hardware trigger, Individual Red, Green, Blue, NIR programmable via camera API
- Exposure Range
- 5 µs to 3000 µs
- Flash Memory
- 32 MB non-volatile memory
- Gain Control
- Manual
- Image Buffer
- 90 MB
- Image Processing
- Image Compression (TurboDrive), gamma, lookup table, pixel correction, flat line correction and line spacial correction
- Partial Image Modes
- ROI, Muti-ROI
- User Sets
- 4 user configuration sets for custom camera settings
Performance
- Dynamic Range dB
- 71
- Gain Range
- 1x to 10x
- Peak Wavelength
- R 650 / G 550 / B 460 nm
- QE (Mono)
- 15 @815 nm
- QE Blue
- 25 @450 nm
- QE Green
- 39 @550 nm
- QE Red
- 42 @620 nm
- Responsivity
- TBD
- Saturation Capacity (e-)
- 32000
- Temporal Dark Noise (Read Noise)
- 9.5
Physical
- Connector

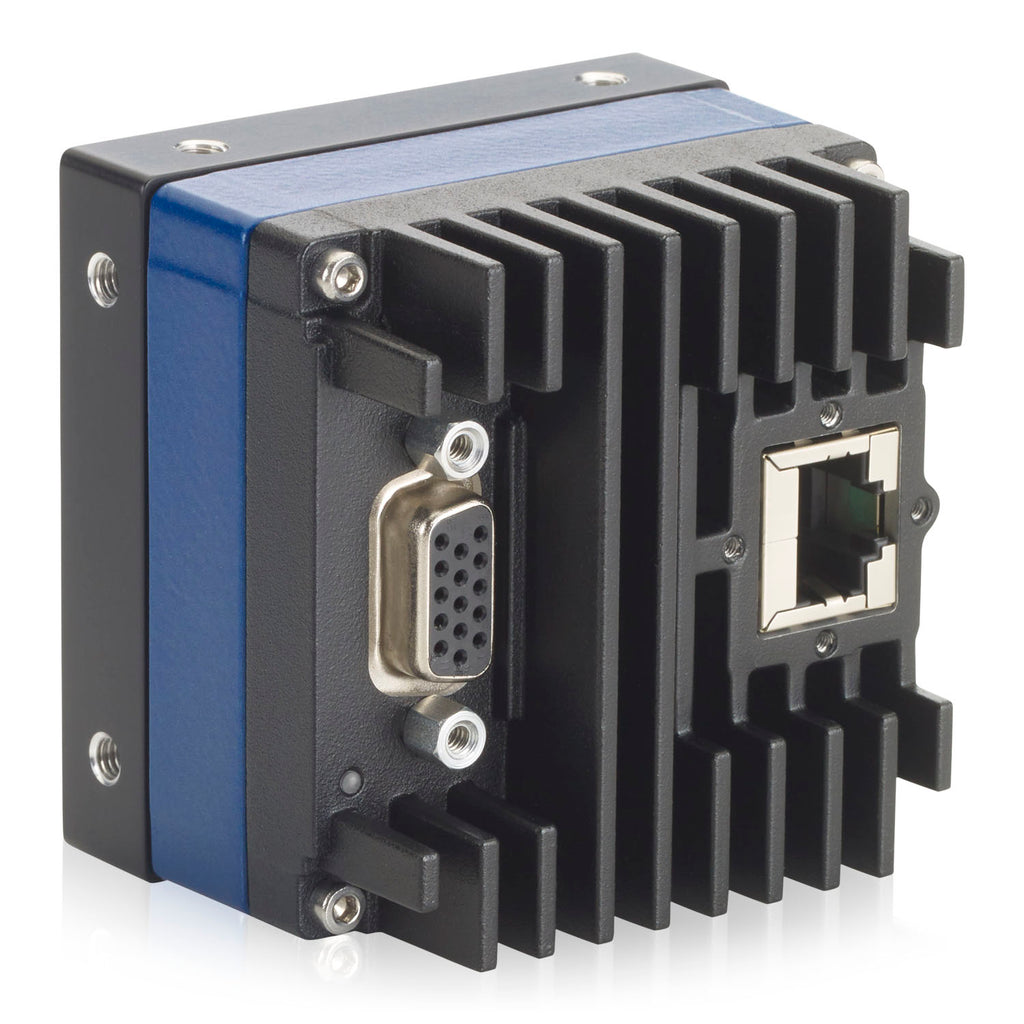

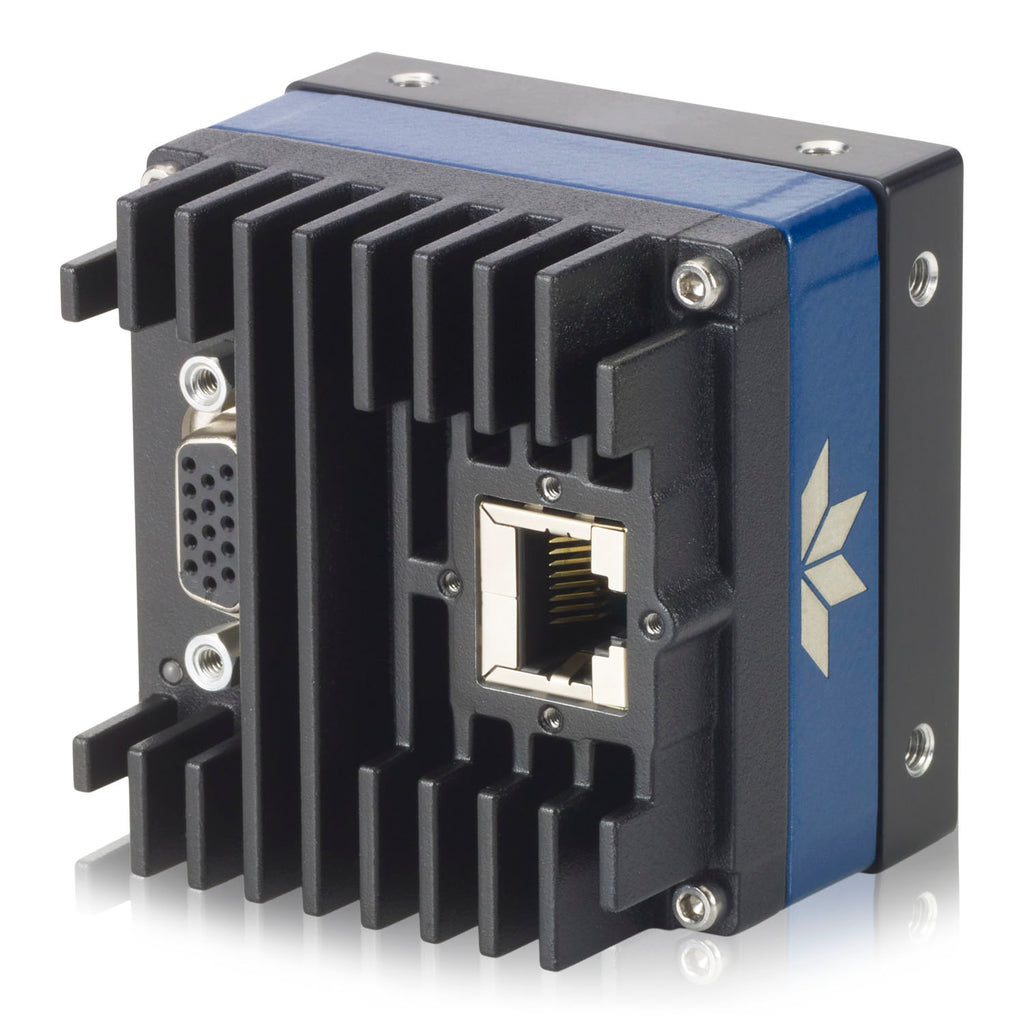

- RJ-45 (vertical & horizontal locking) | HD15 type (female)
- Digitization Bit Depth (ADC)
- 8-bit, 12-bit
- Dimensions [W x H x L]
- 62 mm x 62 mm x 49.3 mm
- Mass
- 280 g
- Non-Isolated I/O Ports
- 2 RS-422 input, 2 RS-422 output, 2 RS-422 Bi-directional
- Operating Humidity
- 15 to 85% (no condensation)
- Operating Temperature
- -10°C to 65°C (measured at the front face of the camera)
- Power Consumption [Maximum]
- 13 W
- Power Requirements
- Power Over Ethernet (PoE) or 12 to 24 V via GPIO connector
- Storage Humidity
- 15 to 85% (no condensation)
- Storage Temperature
- -20°C to 80°C
Recommended System Configuration
- Port
- 5Gigabit Ethernet Port
- Power Sourcing Equipment
- IEEE802.3af-2003 PoE Interface Card / Injector/ Switch or External Camera Power Supply
- Required Accessories
- Lens, Cable, Host Adapter (GigE)
