Part Number

LA-CM-16K05A

Resolution

16384 x 1

Max Line Rate

48 kHz

Sensor Model

Teledyne DALSA

Pixel Size

3.52

Sensor Type

CMOS

Shutter type

Global shutter

Spectrum

Mono

Optical Filter

None

Lens Mount

M72 x 0.75 mm

Synchronization

Image sync: Free-running, external trigger, CC1 trigger

Data Interface

Camera Link (Base, Medium, Full & Deca configuration)

Protection

IP30

Features

Acquisition Modes

Continuous

Exposure Control

Hardware trigger, programmable via camera API

Gain Control

Manual

Performance

Dynamic Range dB

60

Gain Range

1x to 10x

Peak Wavelength

570 nm

Responsivity

80 DN / (nJ / cm2 ) in 12 bit @ 1x gain

Physical

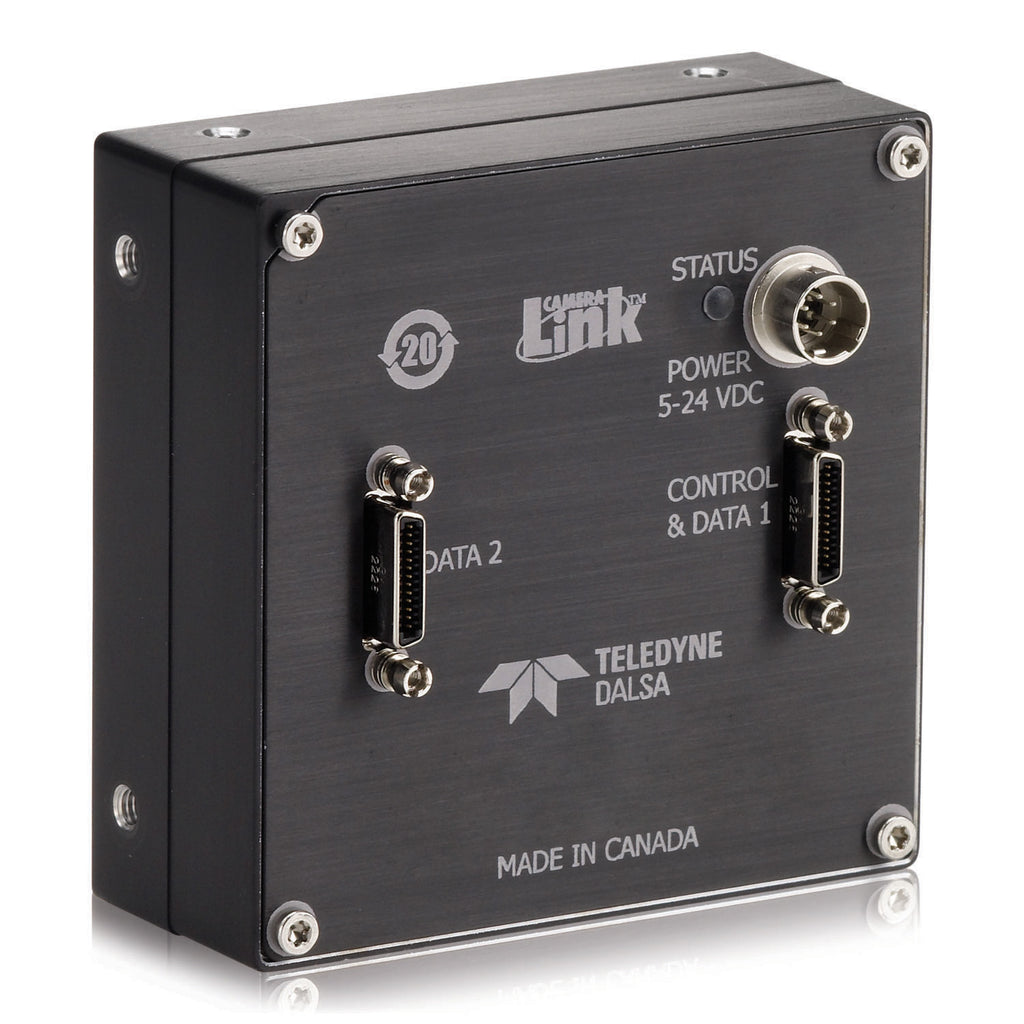

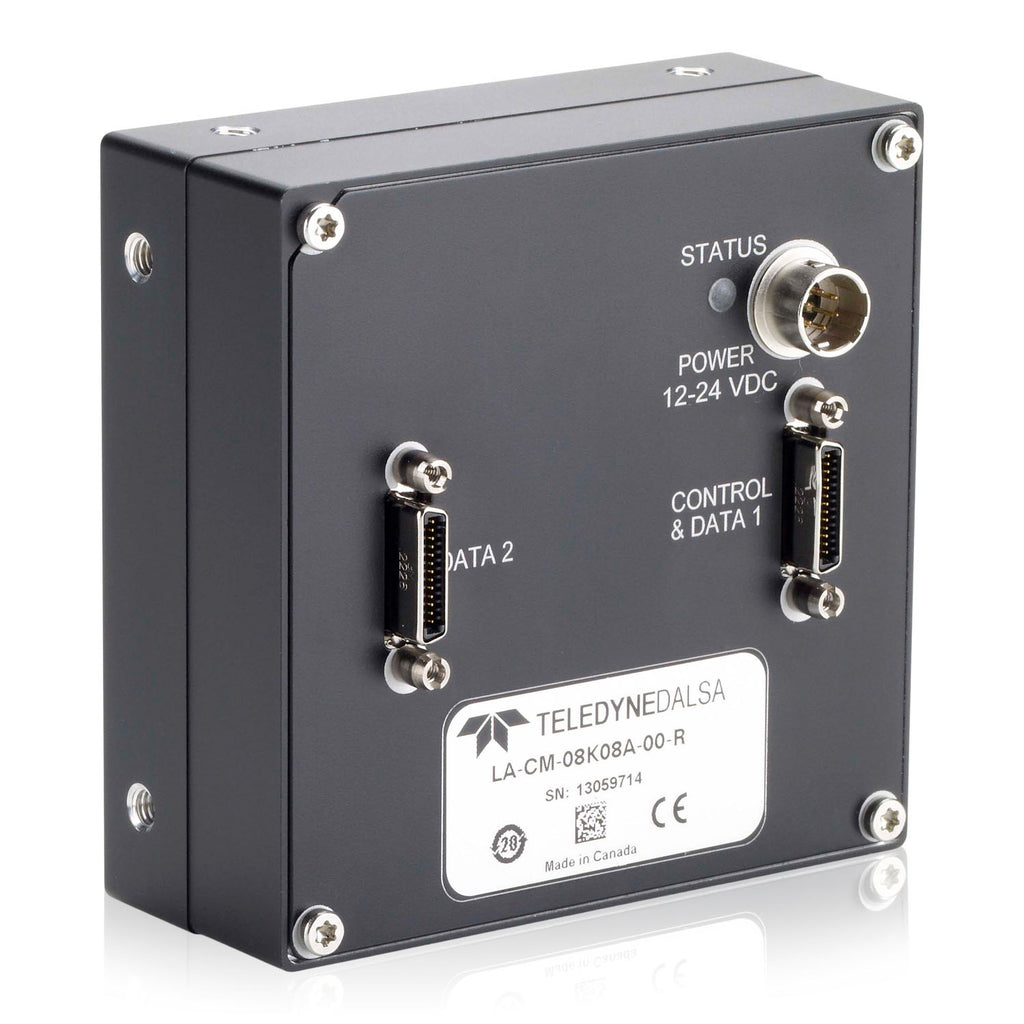

Connector

2x SDR-26 | Hirose 6-pin circular (male)

Digitization Bit Depth (ADC)

8-bit, 12-bit

Dimensions [W x H x L]

76 mm x 76 mm x 36.7 mm

Mass

360 g

Non-Isolated I/O Ports

1 input (CC1)

Operating Temperature

0°C to 65°C (measured at the front face of the camera)

Power Consumption [Maximum]

11 W

Power Requirements

Power-Over-CameraLink (PoCL) or 12 to 24 V via GPIO

Storage Humidity

15 to 85% (no condensation)

Storage Temperature

-20°C to 80°C

Recommended System Configuration

Port

CameraLink (2 x SDR-26 cables)

Power Sourcing Equipment

PoCL or External Camera Power Supply

Required Accessories

Lens, Cable, Host Adapter (CameraLink Frame Grabber)
