Part Number

LA-CC-04K05B

Resolution

4096 x 2 (Bilinear)

Max Line Rate

48 kHz

Sensor Model

Teledyne DALSA

Pixel Size

7.04

Sensor Type

CMOS

Shutter type

Global shutter

Spectrum

Color

Optical Filter

None

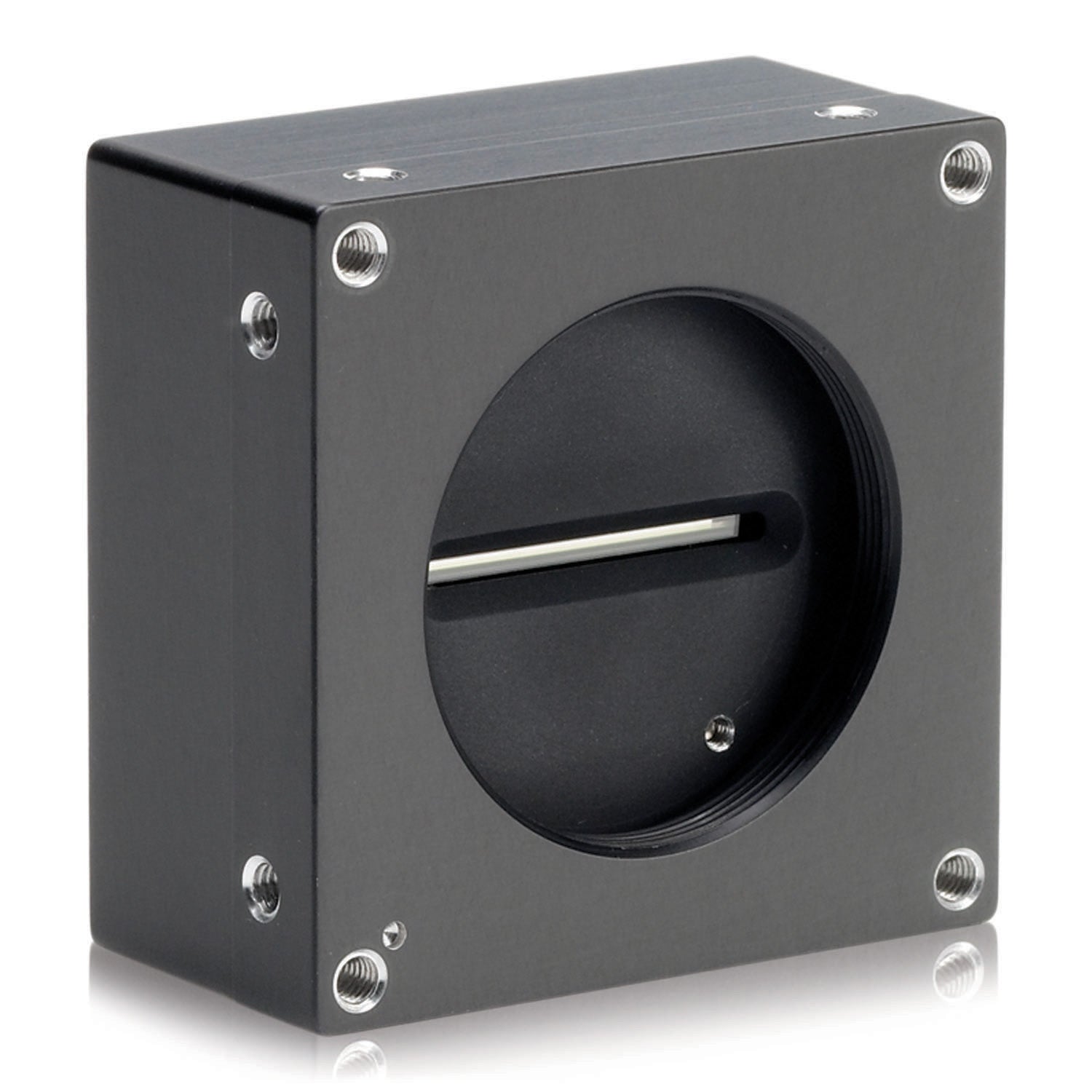

Lens Mount

M42 x 1 mm

Synchronization

Image sync: Free-running, external trigger, CC1 trigger

Data Interface

Camera Link (Base, Medium, Full & Deca configuration)

Protection

IP30

Features

Acquisition Modes

Continuous

Exposure Control

Hardware trigger, programmable via camera API

Gain Control

Manual

Performance

Dynamic Range dB

60

Gain Range

1x to 10x

Peak Wavelength

R 640 / G 520 / B 480 nm

Responsivity

22, 18, 18 (DN8/nJ/cm2)

Physical

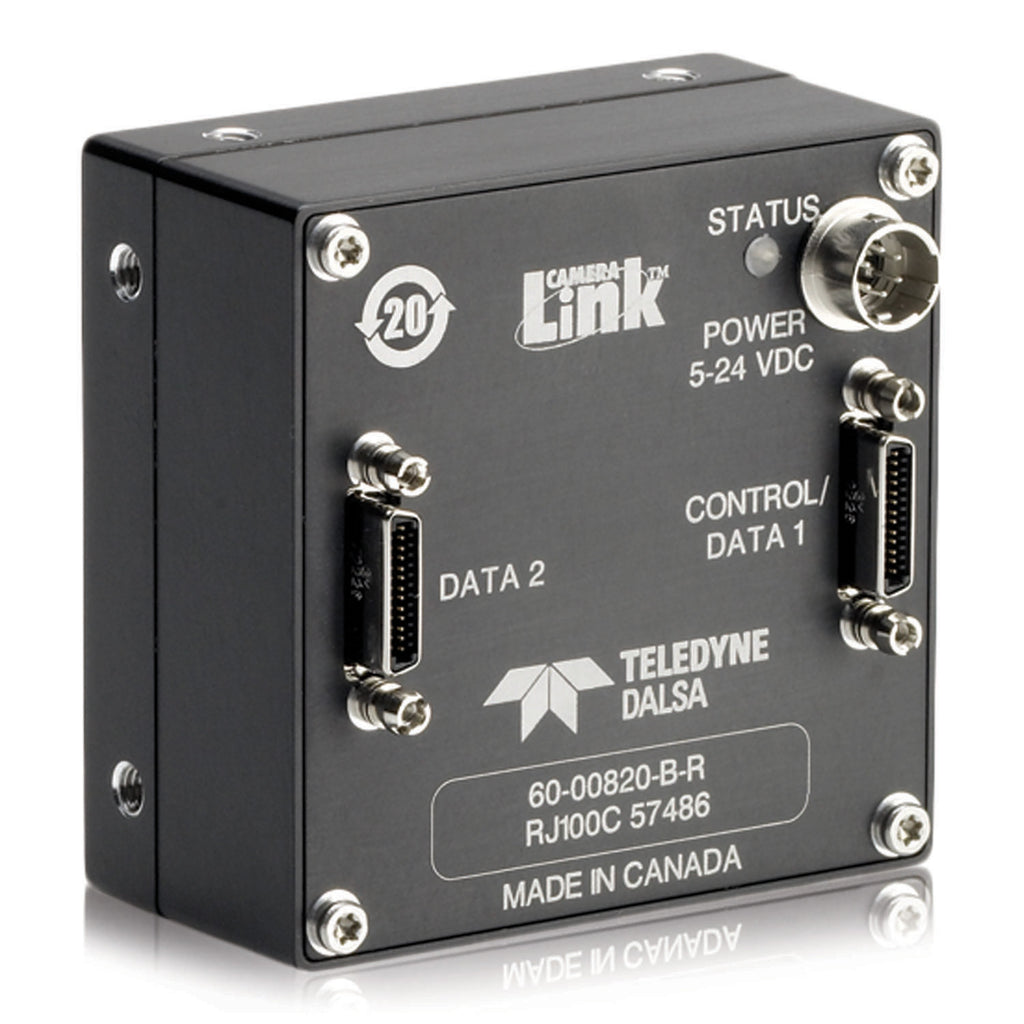

Connector

2x SDR-26 | Hirose 6-pin circular (male)

Digitization Bit Depth (ADC)

8-bit, 12-bit

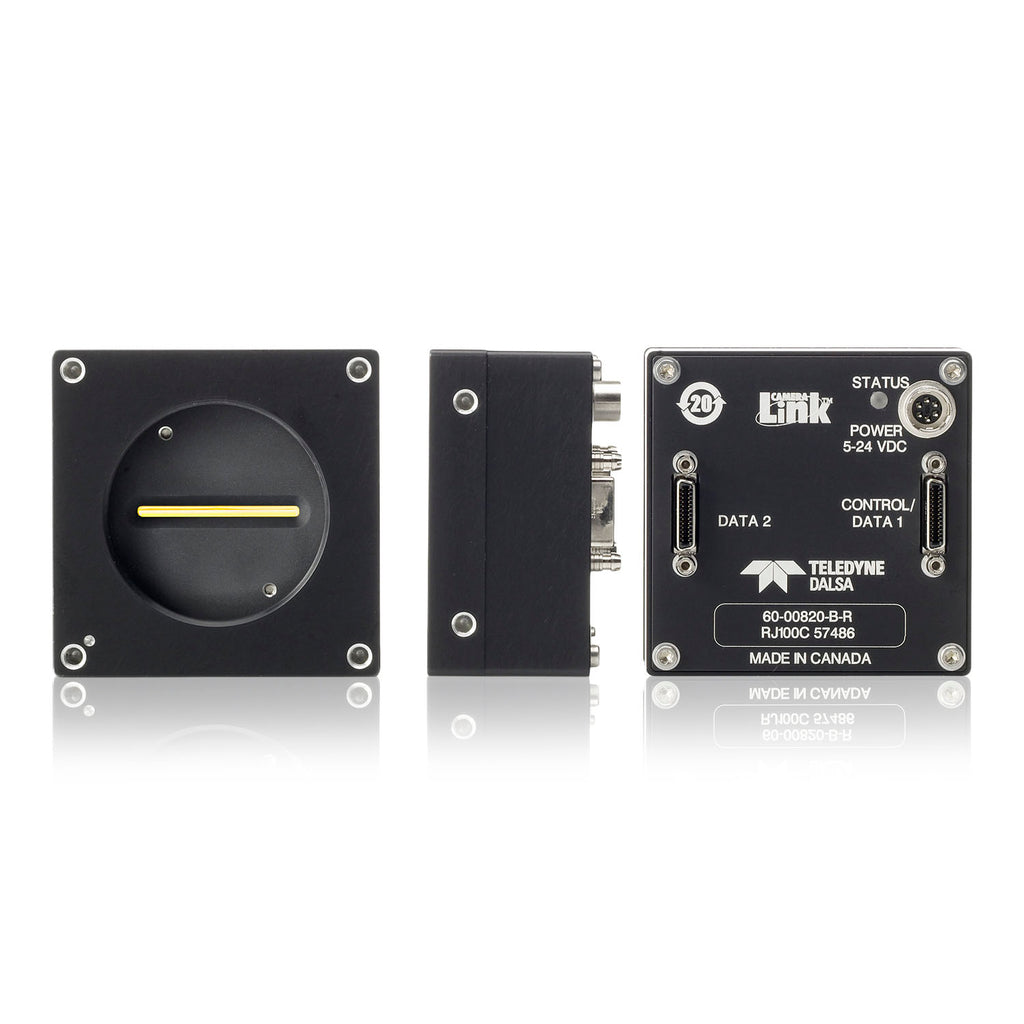

Dimensions [W x H x L]

62 mm x 62 mm x 31 mm

Mass

190 g

Non-Isolated I/O Ports

1 input (CC1)

Operating Temperature

0°C to 65°C (measured at the front face of the camera)

Power Consumption [Maximum]

8 W

Power Requirements

Power-Over-CameraLink (PoCL) or 12 to 24 V via GPIO

Storage Humidity

15 to 85% (no condensation)

Storage Temperature

-20°C to 80°C

Recommended System Configuration

Port

CameraLink (2 x SDR-26 cables)

Power Sourcing Equipment

PoCL or External Camera Power Supply

Required Accessories

Lens, Cable, Host Adapter (CameraLink Frame Grabber)
