Highlighted

Part Number

LA-GC-02K05B

Resolution

2048 x 2 (Bilinear)

Max Line Rate

26 kHz / 45 kHz with TurboDrive

Sensor Model

Teledyne DALSA

Pixel Size

7.04

Sensor Type

CMOS

Shutter type

Global shutter

Spectrum

Color

Optical Filter

None

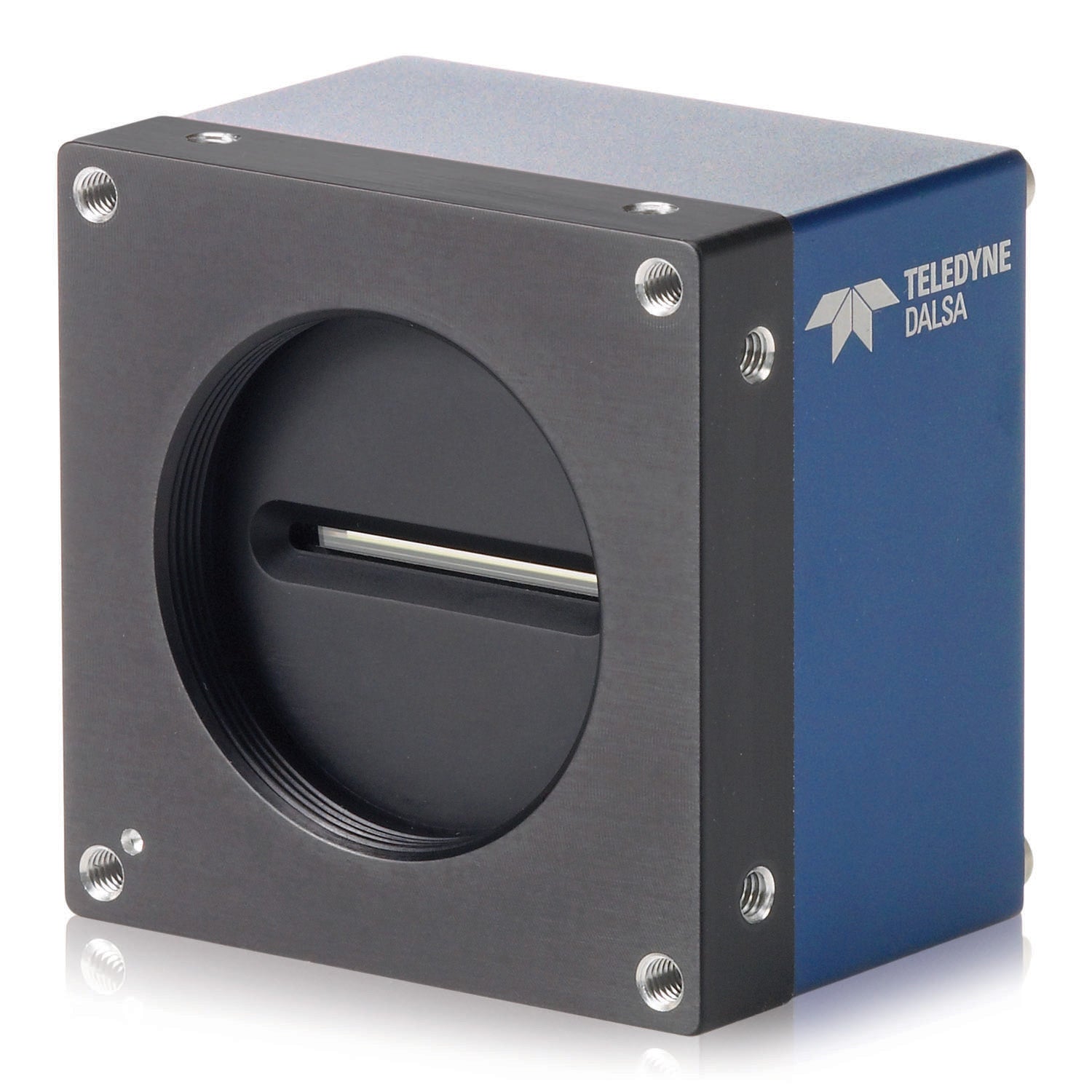

Lens Mount

M42 x 1 mm

Synchronization

Image sync: Free-running, software & hardware trigger

Data Interface

Gigabit Ethernet 1 Gbps

Protection

IP30

Features

Acquisition Modes

Continuous / Single Frame

Exposure Control

Hardware trigger, programmable via camera API

Flash Memory

512 MB non-volatile memory

Gain Control

Manual

Image Buffer

224 MB

Image Processing

Image Compression (TurboDrive), pixel correction, flat line correction and line spacial correction

User Sets

2 user configuration sets for custom camera settings

Performance

Dynamic Range dB

60

Gain Range

1x to 10x

Peak Wavelength

R 640 / G 520 / B 480 nm

Responsivity

22, 18, 18 (DN8/nJ/cm2)

Physical

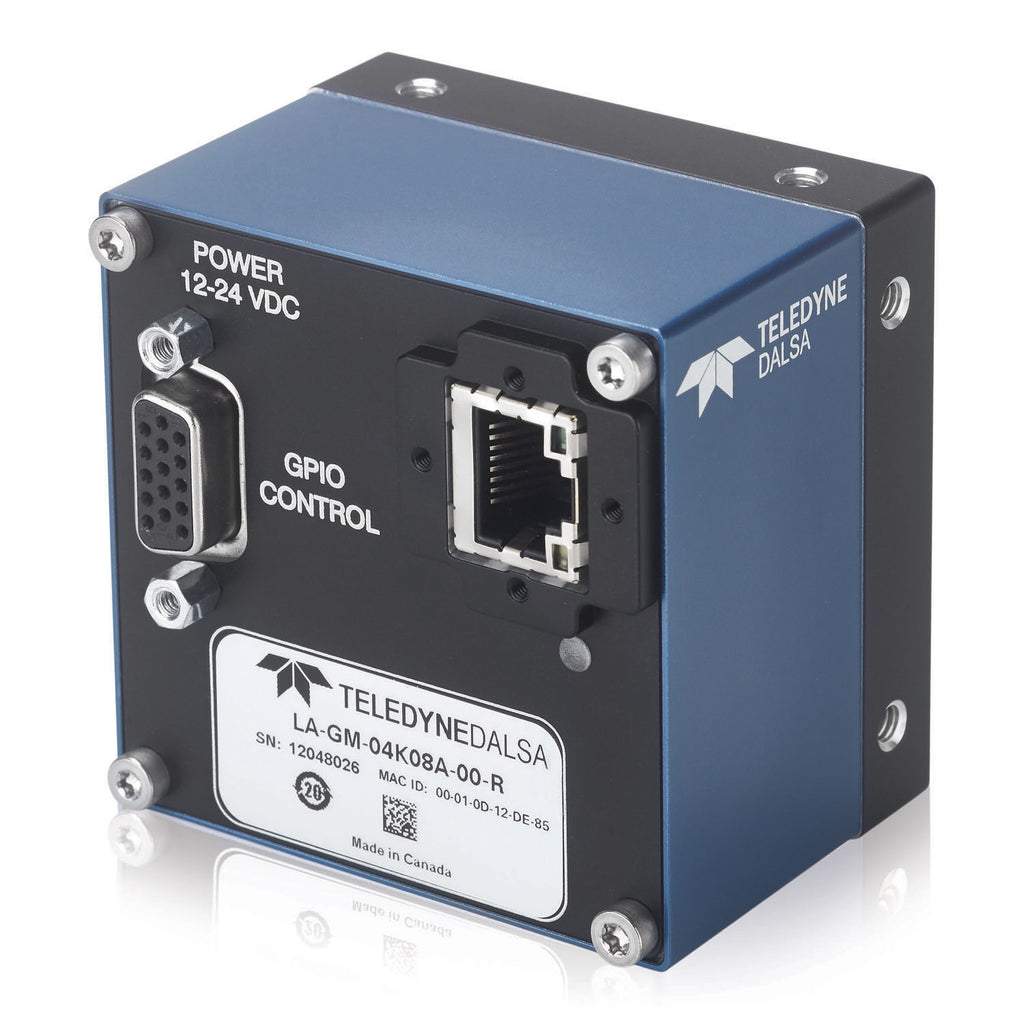

Connector

RJ-45 (vertical & horizontal locking) | HD15 type (female)

Digitization Bit Depth (ADC)

8-bit

Dimensions [W x H x L]

62 mm x 62 mm x 47 mm

Mass

280 g

Non-Isolated I/O Ports

2 RS-422 input, 2 RS-422 output, 2 RS-422 Bi-directional

Operating Temperature

0°C to 65°C (measured at the front face of the camera)

Power Consumption [Maximum]

8 W

Power Requirements

Power Over Ethernet (PoE) or 12 to 24 V via GPIO connector

Storage Humidity

15 to 85% (no condensation)

Storage Temperature

-20°C to 80°C

Recommended System Configuration

Port

Gigabit Ethernet Port

Power Sourcing Equipment

IEEE802.3af-2003 PoE Interface Card / Injector/ Switch or External Camera Power Supply

Required Accessories

Lens, Cable, Host Adapter (GigE)
