Series details

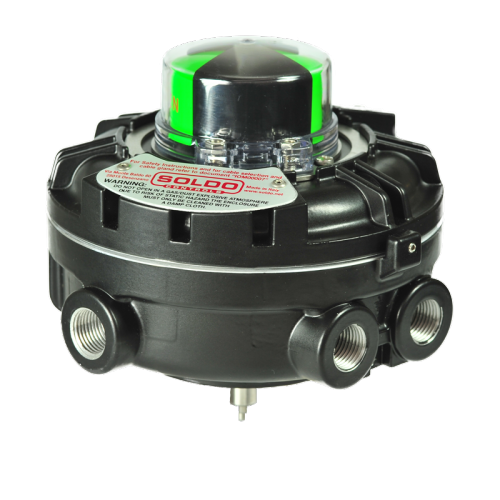

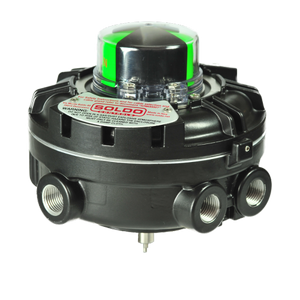

Heavy-duty limit switch boxes, designed for hazardous areas, provide a visual and electrical remote position feedback on automated valves.

Available in Copper free aluminum, the explosion proof enclosure matches the Ex d IIC T6 standards. The SY limit switch box serie, thanks to its large inner volume able to host up to 6 switches and spare pass through terminals and the four cable entries either metrics or imperial, provide a highly customizable solution meeting a wide range of applications. These including, but not limited to, the Oil and Gas, both onshore and off shore, and Petrochemical industries.

Features:

• Twin shaft design, ensuring a complete sealed device: the shaft is splitted in two parts, each fitted and sealed into the body and cover for the best weather insulation even during opening operation.
• Suitable for artic application, down to -60°C
• Enhanced flexibility of electrical feedbacks options.
• Up to four cable entries available in different sizes.
• Enhanced corrosion resistance thanks to Copper free aluminum housing polyester powder coated
• Easy wiring through the terminal PCB board
• NOVA V3 switch option ensures extreme durability and high power switching capabilities
• 4-20 mA position transmitter options
• Single tool opening design, allowing the operator to unscrew the lid by hand after removing the locker
