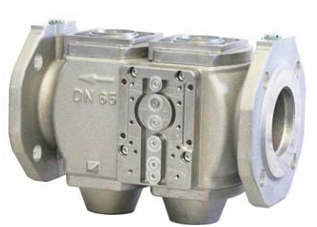

Compact VGD40… double-valve bodies consist of two safety shut-off valves in series. Each individual safety shut-off valve has double seats to achieve high flow. Patented seat construction with individual closing spring for each seat to assure reliable shut-off and high close-off pressure rating.

2½” and 3″ Threaded double valves
4″ and 6″ Flanged double valves
Full port vent connection plates available.

Item                 Description
VGD40.065U    2-1/2" NPT double valve
VGD40.080U    3" NPT double valve
VGD40.100U    4" ANSI flanged double valve
VGD40.150U    6" ANSI flanged double valve
AGA40.4050U    1" NPT vent plate
AGA40.6580U    1-1/4" NPT vent plate
AGA40.0100U    2" NPT vent plate
AGA40.0150U    2-1/2" NPT vent plate
