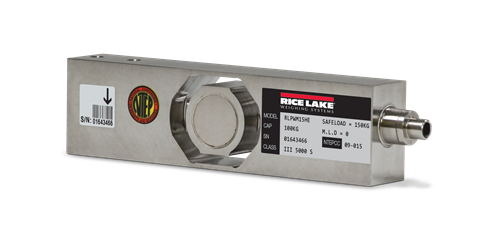

Hermetically sealed, stainless steel, single point load cell. Available in capacities ranging from 10 to 100 kg. NTEP Certified and comes complete with 2.83 or 10 ft of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±10) ohm

Input Resistance:
380 (±15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
1,000 megohm

Cable Length:
10 ft
2.83 ft

Cable Diameter:
0.212 in PVC jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red –Signal
Green +Sense
Grey –Sense

Max Platform Size:
500 × 400 mm
