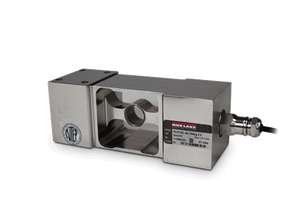

Stainless steel, hermetically sealed, single point load cell that can be used in wet environments. NTEP Certified and comes complete with 10 ft of load cell cable. Capacity ranges from 50 to 1,000 kg.

Full Scale Output:
2 mV/V

Output Resistance:
960 (±50) ohm

Input Resistance:
1,100 (±50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.020% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft
PN 227092: 20 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Blue +Sense
Brown –Sense
Yellow Shield (shield connected to element)

Max Platform Size:
24 × 24 in
