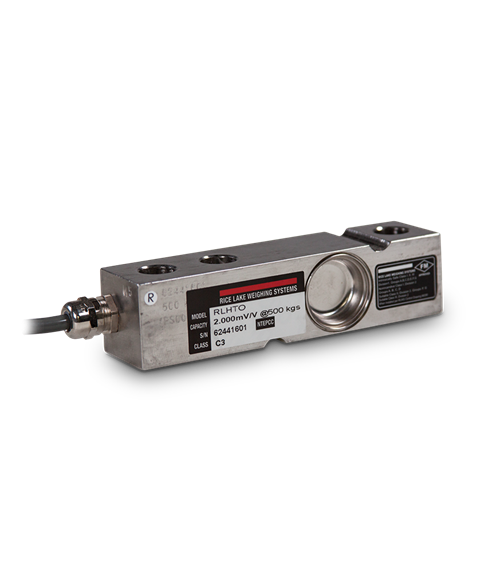

The low profile, hermetic sealing and high-accuracy makes the RLHTO suitable for low-profile platforms, pallet truck weighers, tanks and silos. Capacities available from 500 to 5,000 kg and is complete with 5 m of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±3) ohm

Input Resistance:
380 (±10) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP66/68

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% applied load

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
0.4 mm

Cable Length:
5 m

Cable Diameter:
0.59 mm
Polyurethane jacket

Cable Color Code:
Blue +Excitation
Black –Excitation
White +Signal
Red – Signal
Green +Sense
Grey –Sense
