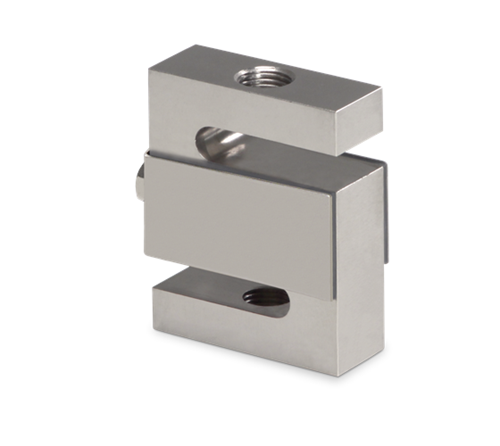

Ideally suited for scale conversions and general-purpose weighing. OIML approved and metric envelope capacities range from 250 to 2,500 kg. Complete with 6 m of load cell cable.

Full Scale Output:
3.0 mV/V ±0.25%

Bridge Resistance:
350 ohm, nominal

Material/Finish:
Alloy steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VAC/DC (15V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
6 m

Cable Diameter:
0.20 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
