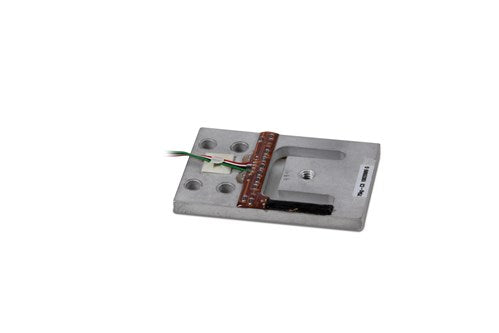

Low-profile aluminum sensor that can be used in bench scales or low-profile floor scales. Available in capacities ranging from 15 to 150 kg. Each module comes complete with 1 or 1.5 m of load cell cable.

Full Scale Output:
1.0 mV/V

Output Resistance:
1,000 (±10) ohm

Input Resistance:
1,180 (±50) ohm

Material/Finish:
Aluminum

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5 to 15 VDC

Combined Error:
0.05% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
15 kg: 1.0 m
37.5 kg, 75 kg, 150 kg: 1.5 m

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
