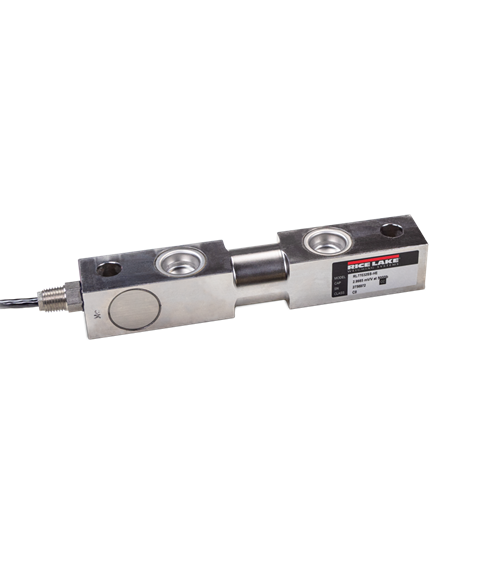

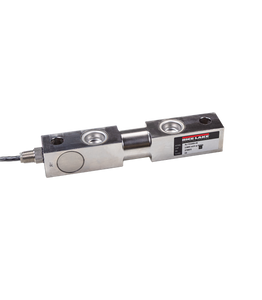

The RL77032SS HE is designed for use in the harshest environments, constructed with stainless steel and is hermetically sealed. It is a double-ended beam with center loading, handling a capacity range of 1,000 to 75,000 lb, equipped with 25 ft of cable.

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (±5) ohm

Input Resistance:
770 (±10) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Deflection at Capacity:
1,000 lb: 0.01 in
5,000 lb: 0.015 in
10,000 to 20,000 lb: 0.022 in
25,000 lb: 0.036 in
50,000 lb: 0.052 in
75,000 lb: 0.07 in

Insulation Resistance:
5,000 megohm

Cable Length:
25 ft
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
