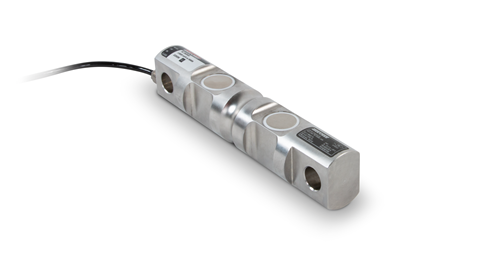

A stainless steel, double-ended beam load cell with an environmental seal and is NTEP Certified. Available in capacities of 5,000 to 150,000 lb and complete with 30 ft of cable.

Full Scale Output:
3.0 mV/V

Output Resistance:
700 (±5) ohm

Input Resistance:
700 (±10) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
14 °F to 104 °F (-10 °C to 40 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
30 ft polyurethane jacket

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
