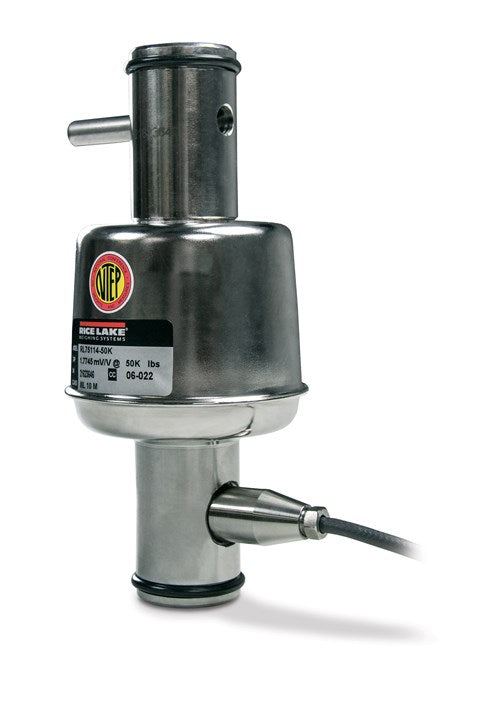

Stainless steel, hermetically sealed rocker column designed to interchange with the Fairbanks Scales® part number 64166. Comes with 30 ft of overbraid cable to protect it from abrasion and pests. NTEP Certified.

Full Scale Output:
1.8 mV/V nominal

Output Resistance:
1,000 (±10) ohm

Input Resistance:
1,000 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.025% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
1,000 megohm

Cable Length:
30 ft

Cable Diameter:
0.200 in overbraid cable

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
