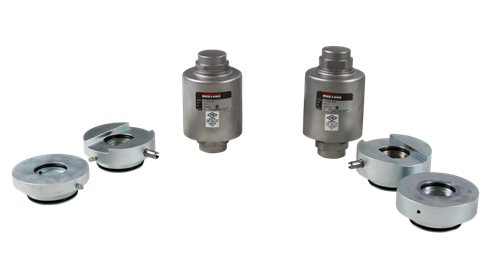

Replacements for the Fairbanks Scales® 70510 and 80453 rocker cells found in many truck scales. Stainless steel and hermetically sealed. Complete with 15 ft of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
1,000 (±2) ohm

Input Resistance:
1,150 (±50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Rated Excitation:
5 to 10 VDC (15 V max)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
15 ft

Cable Diameter:
0.200 in
Stainless steel overbraid cable

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield
