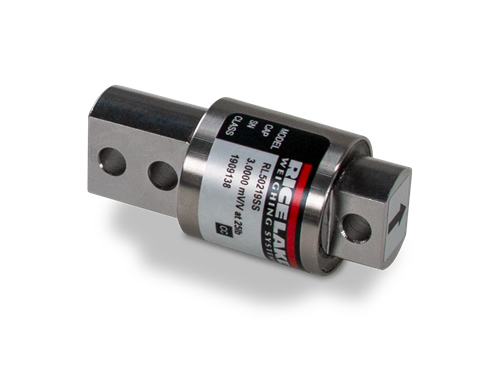

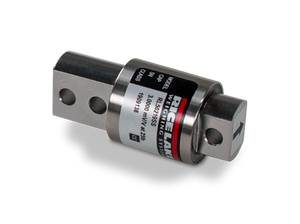

A direct replacement for the RL50210SS stainless cantilever beam cell. It has an IP65 rating and comes with 20 ft of cable. Used in the RL50210SS-TA weigh modules in capacities from 25 to 500 lb.

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (±3) ohm

Input Resistance:
380 to 450 ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Combined Error:
0.017% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
20 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
