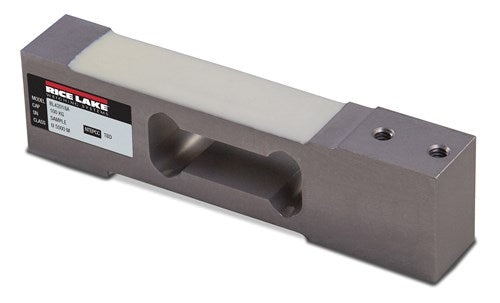

An aluminum, IP66 single point load cell. Available in capacities ranging from 3 to 100 kg and has NTEP Certified and FM approvals. Includes 10 ft of load cell cable.

Full Scale Output:
2.0 mV/V ±10%

Output Resistance:
350 (±3) ohm

Input Resistance:
400 (±20) ohm

Material/Finish:
Aluminum

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP66

Safe Overload:
150% of full scale at center loading point

Rated Excitation:
10 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
>5,000 megohm

Deflection at Capacity:
0.3 to 0.5 mm

Cable Length:
10 ft

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Yellow –Sense

Max Platform Size:
15.75 × 15.75 in max
