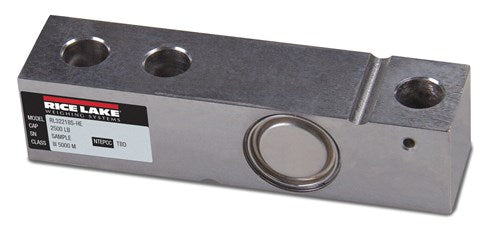

Available in capacities from 1,000 to 10,000 lb, this model is hermetically sealed and comes complete with either 20 ft of PTFE cable or 30 ft of rodent protection cable.

Full Scale Output:
2.0 mV/V ±0.05%
mV/V/ohm calibration

Output Resistance:
350 (±3) ohm

Input Resistance:
400 (±20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 200 °F (-18 °C to 93 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohm

Cable Length:
20 ft PTFE cable
30 ft RP

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
