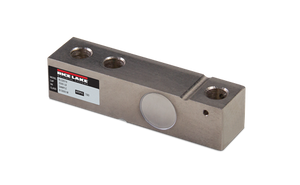

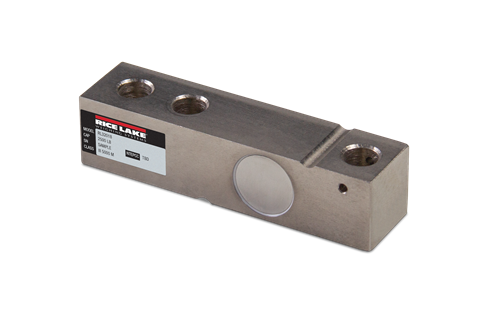

This stainless steel load cell is the metric version of the RL32018S. Sealed to IP67 standards, load cell capacities range from 300 to 5,000 kg. OIML approved and comes with 5 m of cable.

Full Scale Output:
2.0 mV/V ±0.05%
mV/V/ohm calibration

Output Resistance:
350 (±3) ohm

Input Resistance:
400 (±20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
-14 °F to 104 °F (-10° C to 40° C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohm

Deflection at Capacity:
0.2 to 0.4 mm

Cable Length:
5 m

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
