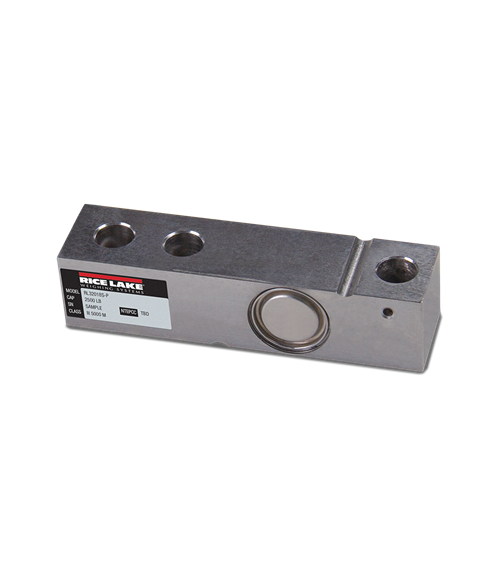

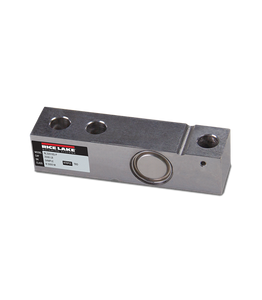

Sealed to IP69K standards, it has a 3 mV output and is FM approved. Available in capacities from 1,000 to 10,000 lb. Comes complete with 20 ft of PTFE cable.

Full Scale Output:
3.0 mV/V ±0.05%
mV/V/ohm calibration

Output Resistance:
350 (± 3) ohm

Input Resistance:
400 (± 20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
-14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohm

Deflection at Capacity:
0.2 to 0.4 mm

Cable Length:
20 ft PTFE cable

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
