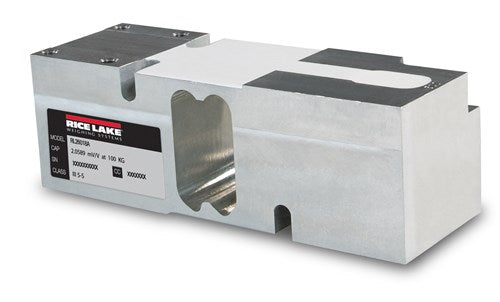

Ideal for bench scales. Comes in capacities from 50 to 635 kg. NTEP and FM approved and is environmentally sealed to IP67 standards. Complete with 10 ft of load cell cable.

Full Scale Output:
2.0 mV/V nominal

Output Resistance:
350 (±3) ohm

Input Resistance:
415 (±15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% of full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
>5,000 megohm

Deflection at Capacity:
0.3 to 0.5 mm

Cable Length:
10 ft

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Yellow -Sense
