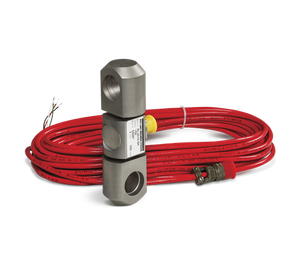

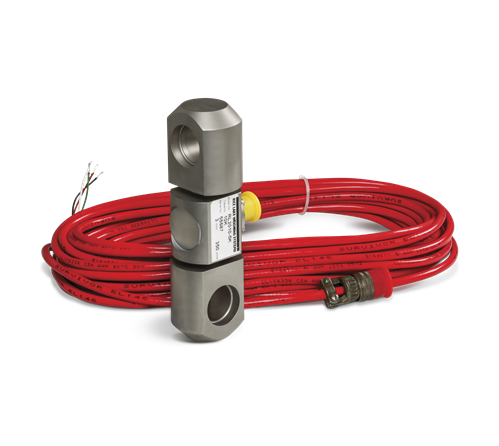

Ranges in capacities of 5,000 to 500,000 lb and comes with 40 ft of load cell cable. Constructed of stainless steel. Ideal for unique tension applications.

Full Scale Output:
3.0 (± 0.1%) mV/V

Bridge Resistance:
350 ohm, nominal

Material/Finish:
Stainless steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Linearity:
0.05% full scale

Repeatability:
0.03% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
40 ft

Cable Diameter:
0.25 in
Polyurethane jacket with connector

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
