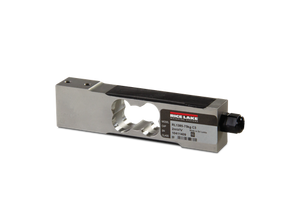

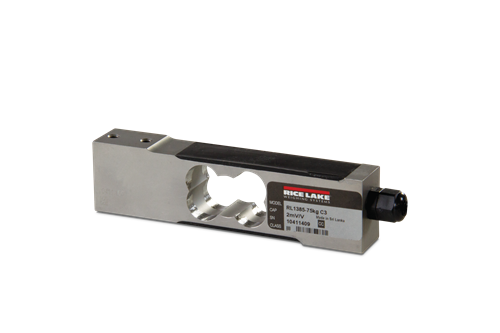

Low-profile, off-center loading load cell. Designed for direct mounting on weighing platforms, hanging scales and other low-capacity beam applications. Stainless steel construction with a humidity-resistant protective coating provides long-term stability, even in harsh environments. Potted cavities provide improved performance in damp environments. Capacities range from 10 to 200 kg. Complete with 10 ft of load cell cable. The 100,000 and 200,000 kg capacities are not NTEP Certified.

Full Scale Output:
2.0 mV/V

Output Resistance:
330 (±25) ohm

Input Resistance:
390 (±20) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
200% full scale

Rated Excitation:
5 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Max Platform Size:
18 × 18 in
