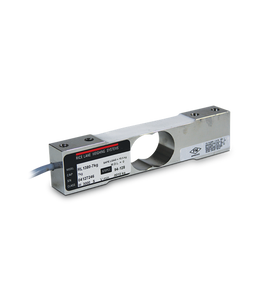

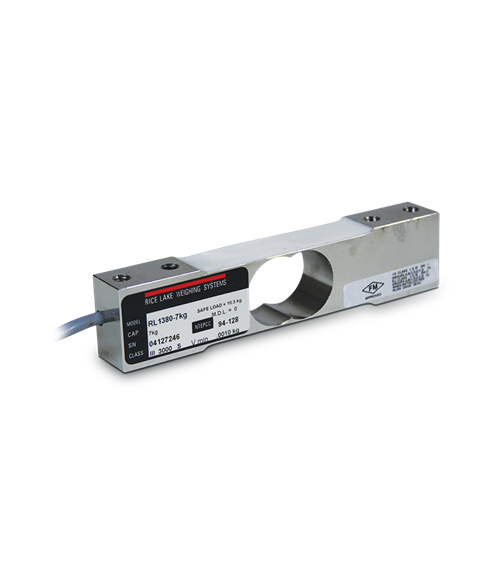

Designed for high performance in wet environments, these single point load cells provide an excellent option when stainless steel is required for an application. Available in capacities ranging from 7 to 60 kg. Complete with 10 ft of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
359 (±10) ohm

Input Resistance:
390 (±15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
<0.4 mm full scale

Cable Length:
10 ft

Cable Diameter:
0.190 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Max Platform Size:
15.75 × 15.75 in
