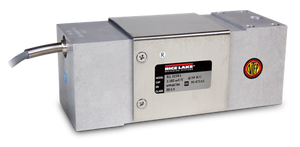

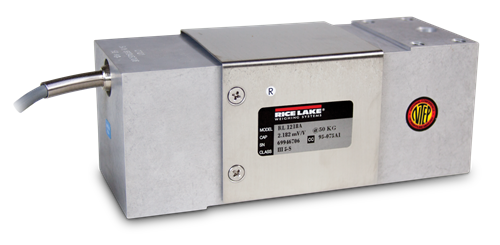

A high-capacity, off-center loading load cell. Capacities range from 50 to 1,000 kg and comes complete with 10 ft of load cell cable. Features potted cavities that offer excellent performance in damp environments.

Full Scale Output:
2.0 mV/V nominal

Output Resistance:
350 (±3) ohm

Input Resistance:
415 (±15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated:
14 °F to 104 °F (-10 °C to 40 °C)
Operating:
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
>5,000 megohm

Deflection at Capacity:
0.4 mm

Cable Length:
10 ft

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Yellow –Sense

Max Platform Size:
50 to 500 kg: 800 × 800 mm
635 to 1,000 kg: 600 × 600 mm
