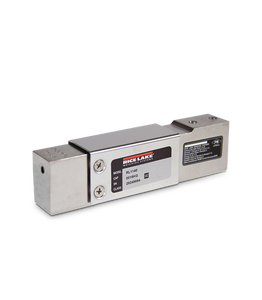

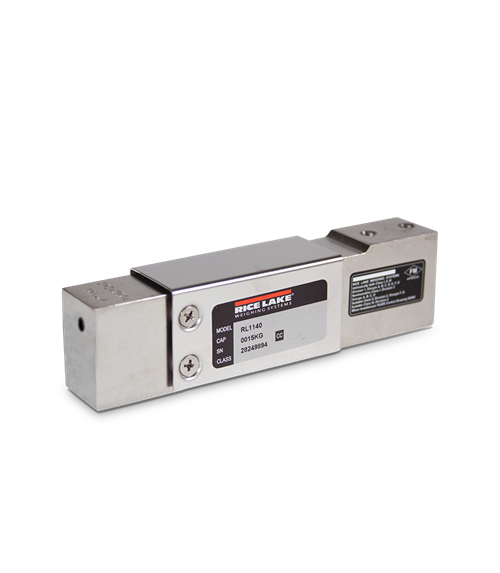

A single point load cell constructed of stainless steel. Ideal for platform scales, and packaging and process weighing equipment. Capacities range from 15 to 150 kg. Complete with 10 ft of load cell cable.

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±5) ohm, nominal

Input Resistance:
383 (±15) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
14 ° F to 104 °F (-10 °C to 40 °C)
Compensated:
14 ° F to 104 °F (-10 °C to 40 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
200% at center loading point,
full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
0.4 mm

Cable Length:
10 ft

Cable Diameter:
0.200 in PVC jacket

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Brown –Sense

Max Platform Size:
15.75 × 15.75 in
