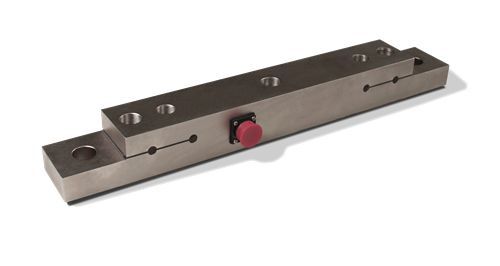

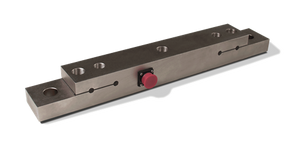

Constructed of alloy steel, environmentally sealed and used in the AX3040 axle scale.

Full Scale Output:
0.5 mV/V at 12,500 lb

Output Resistance:
350 ohm (nominal)

Input Resistance:
350 ohm (nominal)

Material/Finish:
Alloy steel

Temperature:
Operating:
14 °F to 104 °F (-10 °C to 40 °C)

Seal Type:
Environmentally sealed, IP66

Manufacturer Model Number:
8300420-10

Rated Excitation:
15 VDC

Nonlinearity:
±1.0% full scale

Insulation Resistance:
5,000 megohm at 50 VDC
