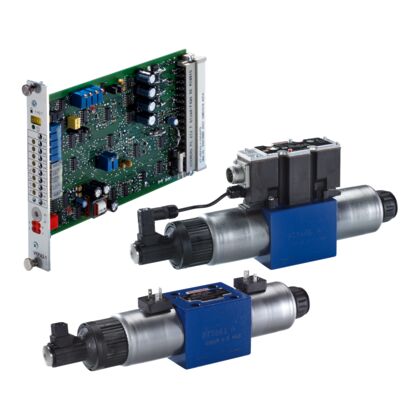

Industrial hydraulic valve in the high power range; reliable regulation of the oil flow direction according to the hydraulics symbol; High accuracy due to internal piston position return

• Slide Valve

• Direct Drive

• Industrial Hydraulic Valve High-Performance

Product attributes
Connection Scheme:    ISO 4401-03-02-0-05
Product Family:    4WRE(E)6,10
Operating pressure, max. [bar]:    315.0
Max. flow rate [l/min]:    80.0
Piston symbol:    Symbol E
Connection Type:    Plate mounting
Caudal nominal [l/min]:    16.0
Nominal size:    6
Drive Type:    Electric with integrated electronics
Number of connections:    4
Number of switching positions:    3
Supply voltage:    24 VDC
Electrical plug:    7-pole plug (6 + PE)
Description of the electrical connection:    7-pole plug (6 + PE) according to EN 175201-804
Connectivity:    Analog, theoretical value ±10 V
Hydraulic Fluid:    HEES, HEPG, HETG, HFDR, HFDU, APP, HLP, HLPD, HVLP, HVLPD
Together:    FKM
Weight [kg]:    2.45
