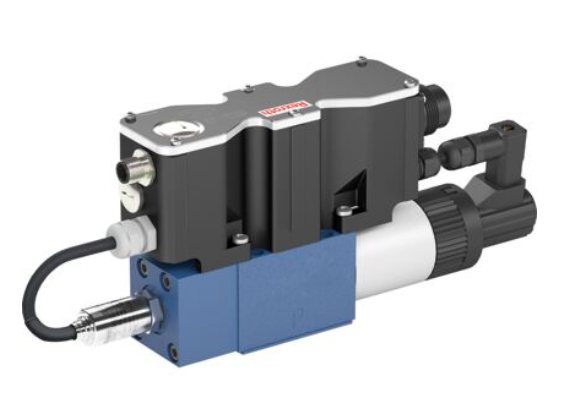

PROPORTIONAL DIRECTIONAL VALVE STW0196-1X/1V5-24CF6 R900705778
Size 10, Symbol Q, Electrical with on-board electronics, 24 VDC. Industrial hydraulic valve in a high performance range. Reliable control of the direction of the oil flow according to hydraulic symbol. High accuracy thanks to internal piston position feedback. Spool valve. Direct actuated
| Product attributes | |
| Connection diagram | ISO 4401-05-04-0-05 |
| Product family | STW 0195, 0196 |
| Operating pressure, max. [bar] | 160 |
| Spool symbol | Symbol Q |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 65 |
| Size | 10 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 12-pole (11 + PE) |
| Electrical connection description | Connector 12-pole (11 + PE) according to EN 175201-804 |
| Connectivity | CANBus DS - 408 |
| Hydraulic fluid | HEES HEPG HETG HFDR HFDU HL HLP HLPD HVLP HVLPD |
| Seals | FKM |
| Weight [kg] | 6.37 |
