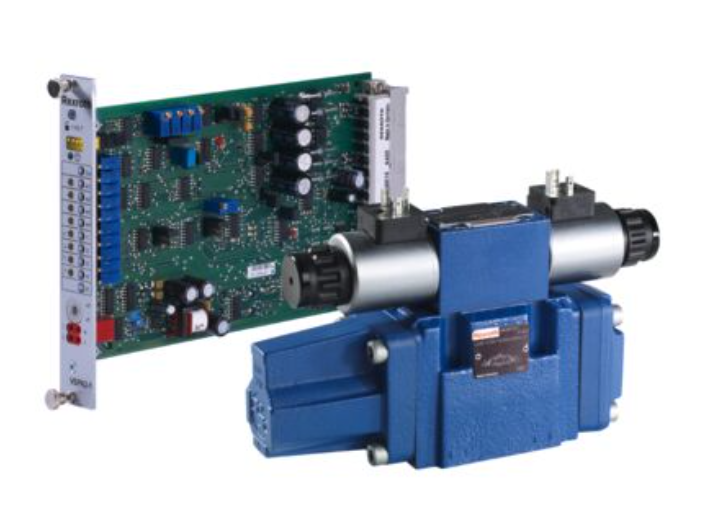

PROPORTIONAL DIRECTIONAL VALVE 4WRZE25E325-7X/6EG24N9EK31/F1D3M R901204540
Size 25, Symbol E, Electrical with on-board electronics, 24 VDC
| Product attributes | |
| Connection diagram | ISO 4401-08-08-0-05 |
| Product family | 4WRZ(E) |
| Operating pressure, max. [bar] | 350 |
| Max. flow [l/min] | 870 |
| Spool symbol | Symbol E |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 325 |
| Size | 25 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value 4…20 mA |
| Conformity description | CE – Electromagnetic compatibility (EMC) directive 2014/30/EU UKCA – Electromagnetic compatibility (EMC) SI2016/1091 |
| Hydraulic fluid | HFC HL HLP HLPD HVLP HVLPD |
| Seals | NBR |
| Weight [kg] | 20.66 |
