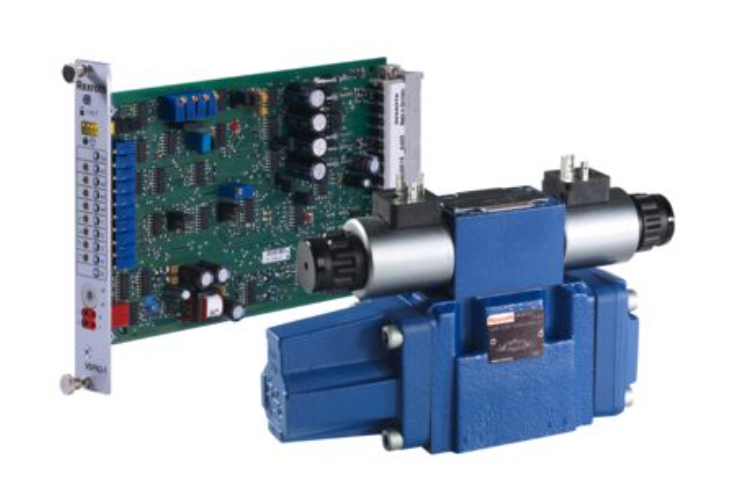

PROPORTIONAL DIRECTIONAL VALVE 4WRZ25W6-325-7X/6EG24N9K4/V R900944187
Size 25, Symbol W6, Electrical with external electronics
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol
Spool valve
Pilot-operated
External pilot oil supply, external pilot oil return
Without pressure reducing valve
With concealed auxiliary actuation
| Atributo | Valor |
|---|---|
| Connection diagram | ISO 4401-08-08-0-05 |
| Product family | 4WRZ(E) |
| Operating pressure, max. [bar] | 350.0 |
| Max. flow [l/min] | 870.0 |
| Spool symbol | Symbol W6 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 325.0 |
| Size | 25 |
| Type of actuation | Electrical with external electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Hydraulic fluid | HEES, HEPG, HETG, HFDR, HFDU, HL, HLP, HLPD, HVLP, HVLPD |
| Seals | FKM |
| Weight [kg] | 19.88 |
