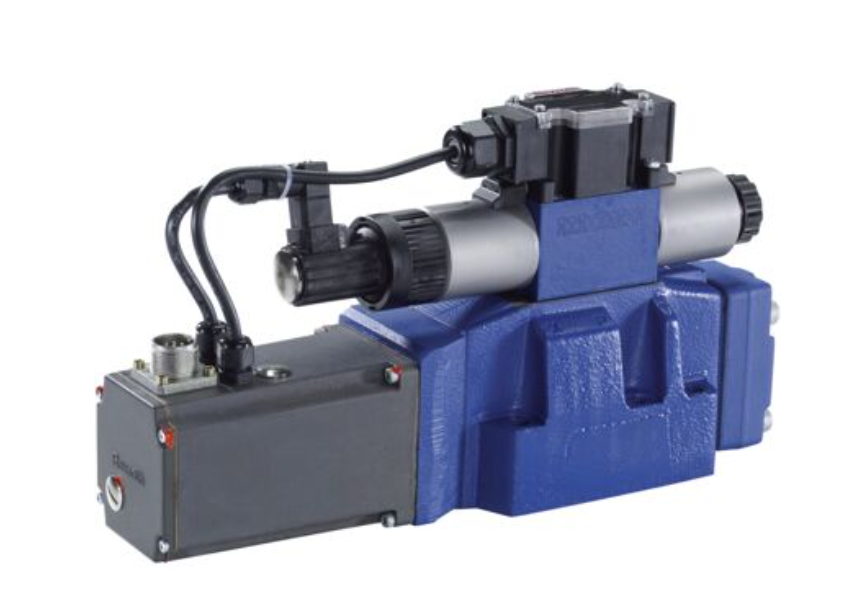

PROPORTIONAL DIRECTIONAL VALVE 4WRTE25E220L-4X/6EG24ETK31/A1M R900957470
| Size 25, Symbol E, Electrical with on-board electronics, 24 VDC Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol. Spool valve Direct actuated |
| Product attributes | |
| Connection diagram | ISO 4401-08-08-0-05 |
| Product family | 4WRTE |
| Operating pressure, max. [bar] | 350 |
| Max. flow [l/min] | 870 |
| Spool symbol | Symbol E |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 220 |
| Size | 25 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value ±10 V |
| Hydraulic fluid | HETG HFC (Fuchs: Hydrotherm 46M, Petrofer: Ultra Safe 620) HL HLP HLPD HVLP HVLPD |
| Seals | NBR |
| Weight [kg] | 18.2 |
