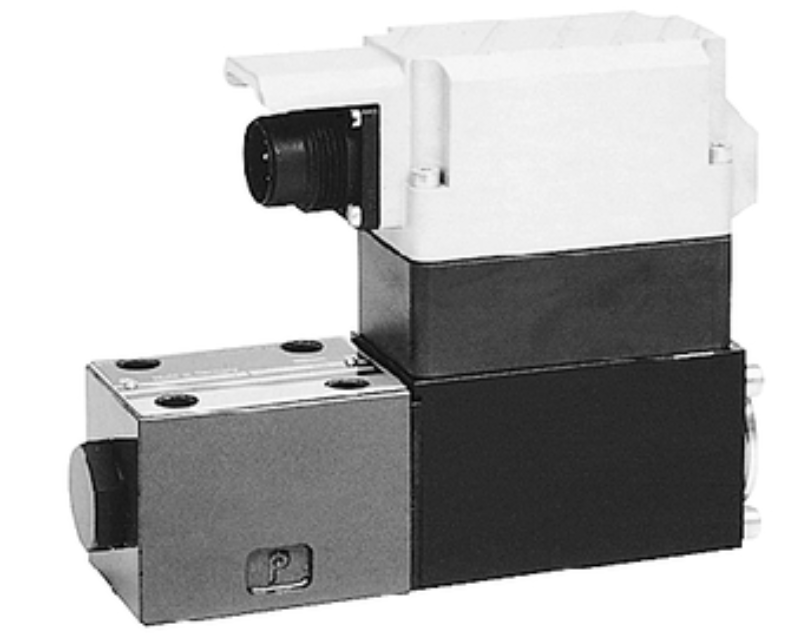

PROPORTIONAL DIRECTIONAL VALVE 4WRREH6VB24L-1X/G24K0/B5M 0811404721
Size 6, Symbol V, Electrical with on-board electronics, 24 VDC
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback
Spool valve
Direct actuated
| Attribute | Value |
|---|---|
| Connection diagram | ISO 4401-03-02-0-05 |
| Operating pressure, max. [bar] | 315.0 |
| Spool symbol | Symbol V |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 24.0 |
| Size | 6 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 12-pole (11 + PE) |
| Connectivity | Analog, command value 0…10 V |
| Hydraulic fluid | HFC, HL, HLP, HLPD, HVLP, HVLPD |
| Seals | NBR |
| Weight [kg] | 2.28 |
