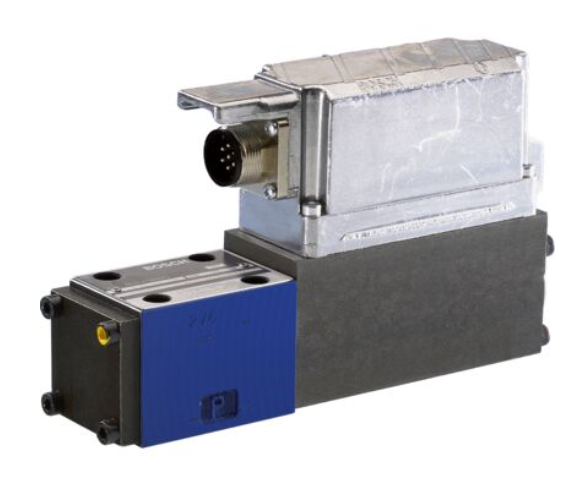

PROPORTIONAL DIRECTIONAL VALVE 4WRPH6C4B40L-2X/G24Z4/M 0811404039
Size 6, Symbol C4, Electrical with external electronics. Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback. Spool valve. Direct actuated
| Product attributes | |
| Connection diagram | ISO 4401-03-02-0-94 |
| Product family | 4WRPH 6 |
| Operating pressure, max. [bar] | 315 |
| Max. flow [l/min] | 50 |
| Spool symbol | Symbol C4 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 40 |
| Size | 6 |
| Type of actuation | Electrical with external electronics |
| Number of ports | 4 |
| Number of switching positions | 4 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Hydraulic fluid | HFC HL HLP HLPD HVLP HVLPD |
| Seals | NBR |
| Weight [kg] | 2.71 |
