Size 10, Symbol C1, Electrical with external electronics

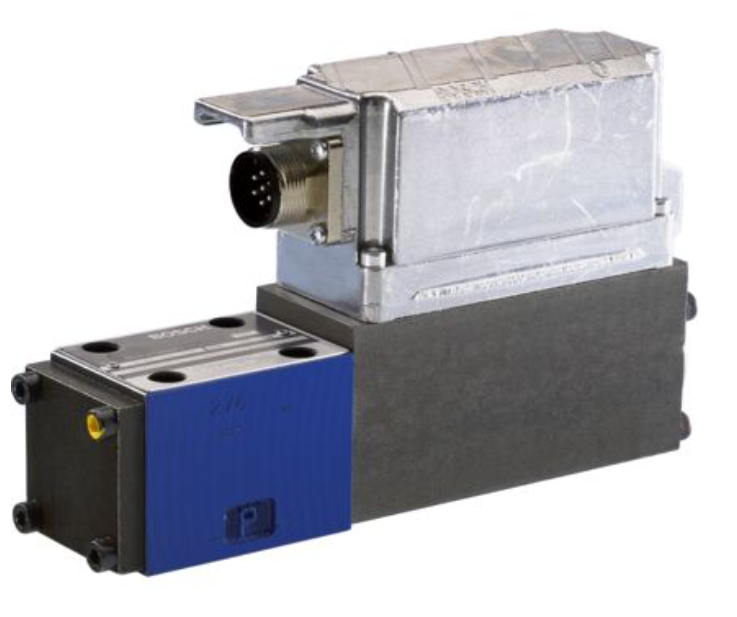

Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback
Spool valve
Direct actuated
Linear flow characteristics

Product attributes
Connection diagram    ISO 4401-05-04-0-05
Product family    4WRPH.-750
Operating pressure, max. [bar]    315.0
Spool symbol    Symbol C1
Type of connection    Subplate mounting
Nominal flow [l/min]    100.0
Size    10
Type of actuation    Electrical with external electronics
Number of ports    4
Number of switching positions    4
Supply voltage    24 VDC
Electrical connector    Connector, 3-pole (2 + PE)
Electrical connection description    Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid    HFC
HL
HLP
HLPD
HVLP
HVLPD
Seals    NBR
Weight [kg]    6.8
