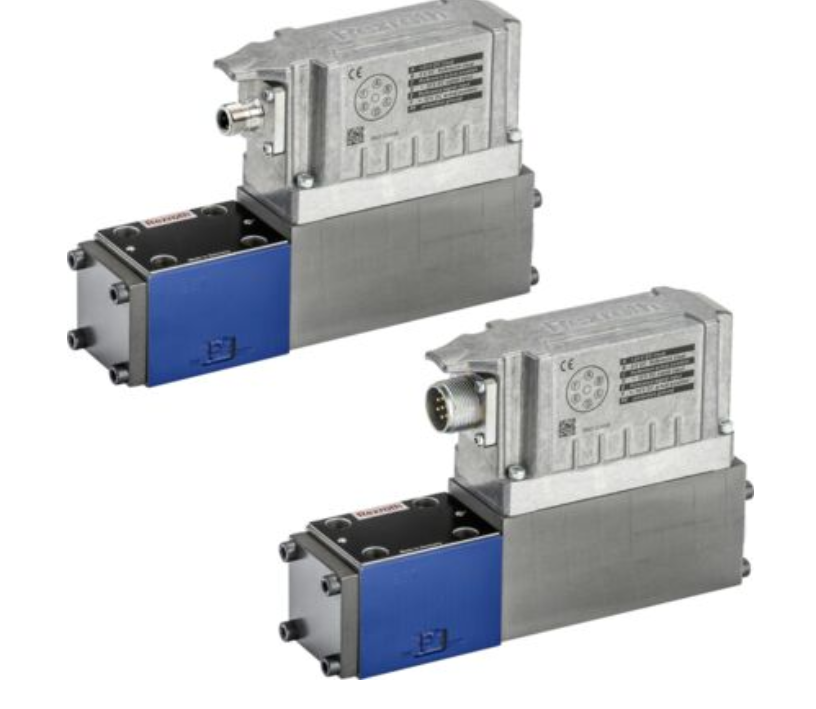

PROPORTIONAL DIRECTIONAL VALVE 4WRPEH6C5B04L-3X/M/24A1 R901382524
Size 6, Symbol C5, Electrical with on-board electronics, 24 VDC
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback
Spool valve
Direct actuated
Safety shut-down with additional fail-safe position
| Característica | Valor |
|---|---|
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | 4WRPEH6 |
| Operating pressure, max. [bar] | 350.0 |
| Max. flow [l/min] | 8.0 |
| Spool symbol | Symbol C5 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 4.0 |
| Size | 6 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 4 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Connectivity | Command value input ±10 V |
| Hydraulic fluid | HFC, HL, HLP, HLPD, HVLP, HVLPD |
| Seals | NBR |
| Weight [kg] | 2.96 |
