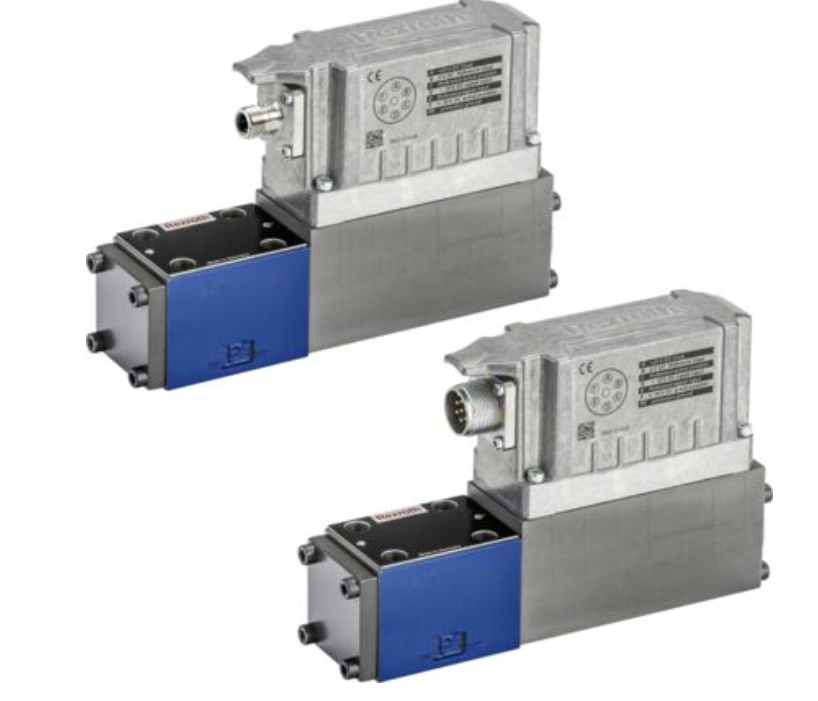

Size 6, Symbol C4, Electrical with on-board electronics, 24 VDC
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback
Spool valve
Direct actuated
Safety shut-down with additional fail-safe position

Attribute    Value
Connection diagram    ISO 4401-03-02-0-05
Product family    4WRPEH6
Operating pressure, max. [bar]    350.0
Max. flow [l/min]    22.0
Spool symbol    Symbol C4
Type of connection    Subplate mounting
Nominal flow [l/min]    12.0
Size    6
Type of actuation    Electrical with on-board electronics
Number of ports    4
Number of switching positions    4
Supply voltage    24 VDC
Electrical connector    Connector, 7-pole (6 + PE)
Electrical connection description    Connector 3-pole (2 + PE) according to EN 175301-803
Connectivity    Command value input ±10 V
Hydraulic fluid    HFC, HL, HLP, HLPD, HVLP, HVLPD
Seals    NBR
Weight [kg]    2.98
