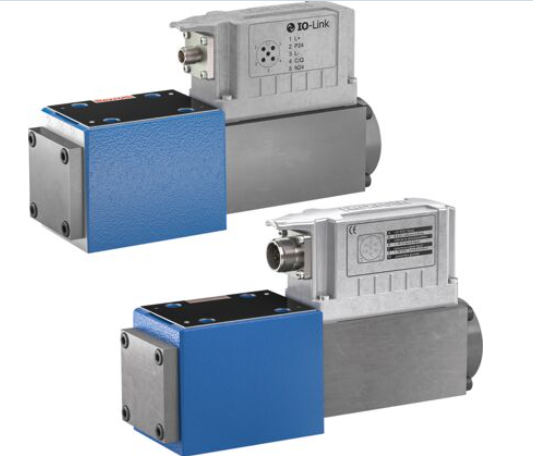

PROPORTIONAL DIRECTIONAL VALVE 4WRPEH10C4B50L-3X/M/24A1 R901494254
| Size 10, Symbol C4, Electrical with on-board electronics, 24 VDC Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback Spool valve Direct actuated |
| Product attributes | |
| Connection diagram | ISO 4401-05-04-0-05 |
| Product family | 4WRPEH10 |
| Operating pressure, max. [bar] | 350 |
| Spool symbol | Symbol C4 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 50 |
| Size | 10 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 4 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Command value input ±10 V |
| Hydraulic fluid | HFC |
| HL | |
| HLP | |
| HLPD | |
| HVLP | |
| HVLPD | |
| Seals | NBR |
| Weight [kg] | 6.7 |
