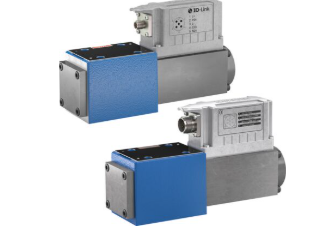

PROPORTIONAL DIRECTIONAL VALVE 4WRPEH10C3B50L-3X/M/24F1 R901526122
| Size 10, Symbol C3, Electrical with on-board electronics, 24 VDC Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback Spool valve Direct actuated |
| Product attributes | |
| Connection diagram | ISO 4401-05-04-0-05 |
| Product family | 4WRPEH10 |
| Operating pressure, max. [bar] | 350 |
| Spool symbol | Symbol C3 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 50 |
| Size | 10 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 4 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value 4…20 mA |
| Hydraulic fluid | HFC HL HLP HLPD HVLP HVLPD |
| Seals | NBR |
| Weight [kg] | 6.72 |
