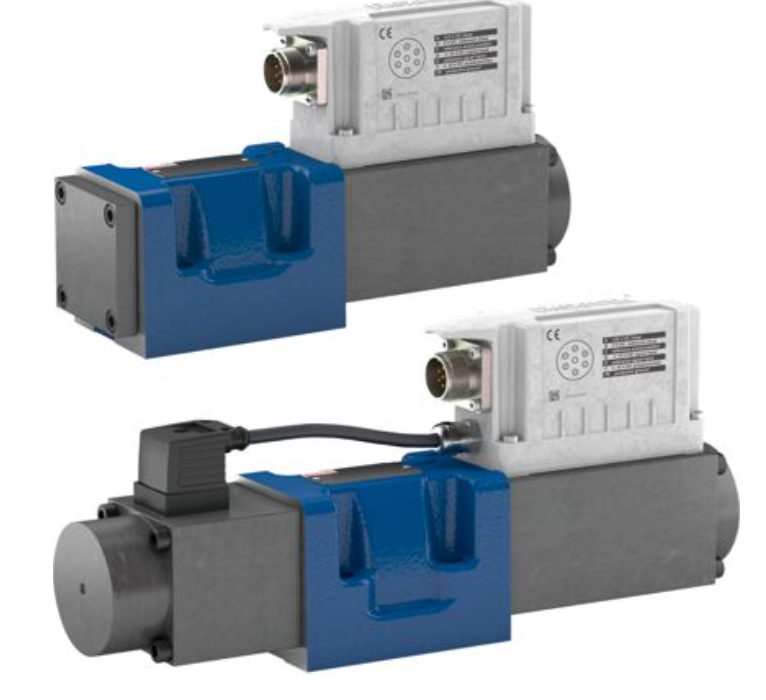

Size 10, Symbol V, Electrical with on-board electronics, 24 VDC
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback
Progressive flow characteristics
Progressive flow characteristic with linear fine control range
Integrated electronics
Spool valve
Direct actuated

Attribute    Value
Connection diagram    ISO 4401-03-02-0-05
Product family    4WRPEH6
Operating pressure, max. [bar]    350.0
Max. flow [l/min]    22.0
Spool symbol    Symbol C4
Type of connection    Subplate mounting
Nominal flow [l/min]    12.0
Size    6
Type of actuation    Electrical with on-board electronics
Number of ports    4
Number of switching positions    4
Supply voltage    24 VDC
Electrical connector    Connector, 7-pole (6 + PE)
Electrical connection description    Connector 3-pole (2 + PE) according to EN 175301-803
Connectivity    Command value input ±10 V
Hydraulic fluid    HFC, HL, HLP, HLPD, HVLP, HVLPD
Seals    NBR
Weight [kg]    2.98
