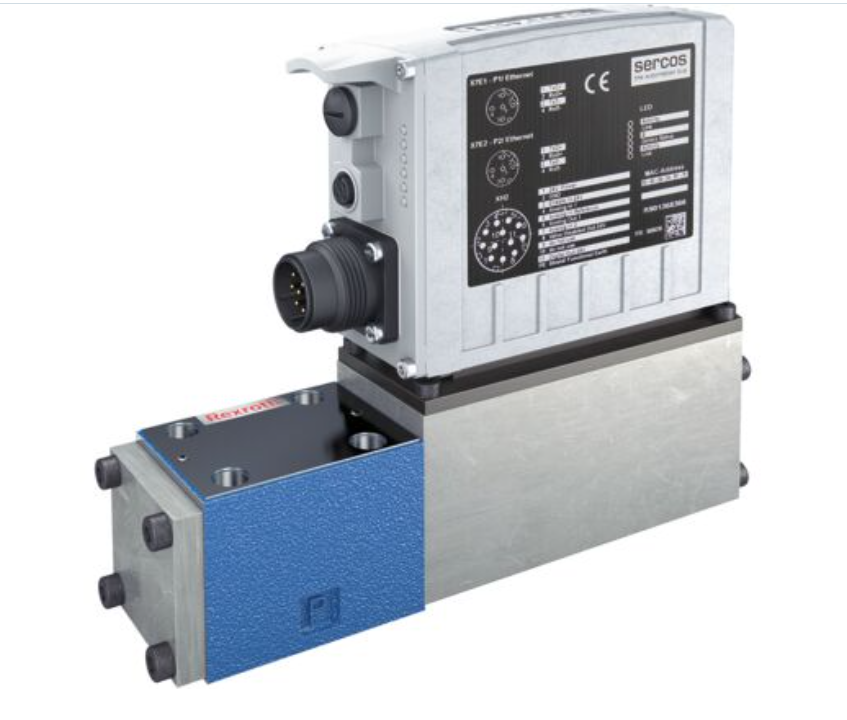

PROPORTIONAL DIRECTIONAL VALVE 4WRPDH6C3B40L-2X/M/24ED6T R901438459
Size 6, Symbol C3, Electrical with on-board electronics, 24 VDC
| Product attributes | |
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | 4WRPDH |
| Operating pressure, max. [bar] | 350 |
| Max. flow [l/min] | 50 |
| Spool symbol | Symbol C3 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 40 |
| Size | 6 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 4 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 12-pole (11 + PE) |
| Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Digital, EtherNET/IP ±10 VDC or 4 ... 20 mA |
| Conformity description | CE – Electromagnetic compatibility (EMC) directive 2014/30/EU UKCA – Electromagnetic compatibility (EMC) SI2016/1091 |
| Hydraulic fluid | HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046) HL HLP HLPD HVLP HVLPD |
| Seals | NBR |
| Weight [kg] | 3.56 |
