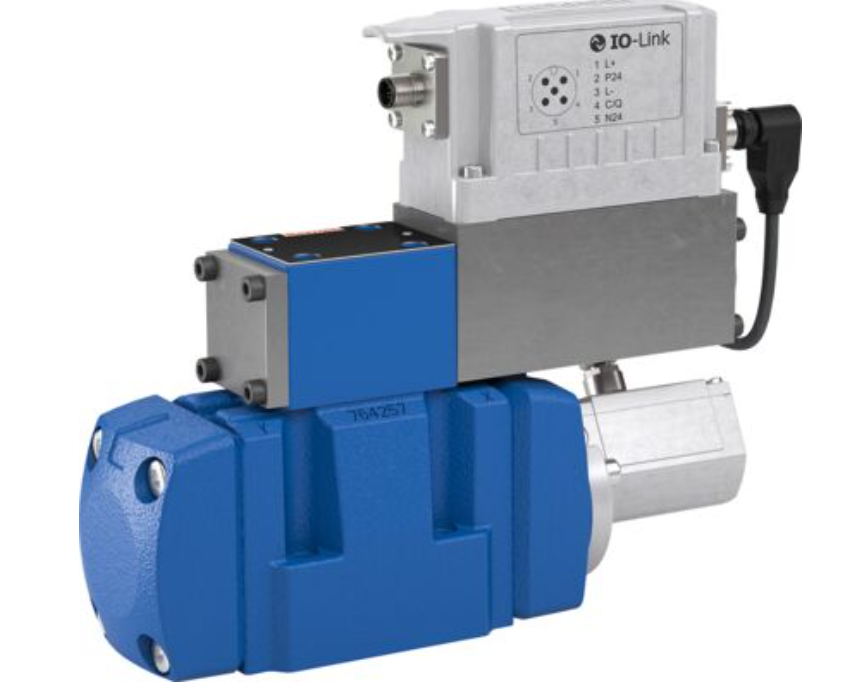

PROPORTIONAL DIRECTIONAL VALVE 4WRLE10W6-100LJ-4X/MXY/24F1 R901567477
Size 10, , Symbol W6, , Electrical with on-board electronics, , 24 VDC
| Product attributes | |
| Connection diagram | ISO 4401-05-05-0-05 |
| Product family | 4WRLE |
| Operating pressure, max. [bar] | 350 |
| Max. flow [l/min] | 300 |
| Spool symbol | Symbol W6 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 100 |
| Size | 10 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value 4…20 mA |
| Hydraulic fluid | HFC HL HLP HLPD HVLP HVLPD |
| Seals | NBR |
| Weight [kg] | 9.11 |
