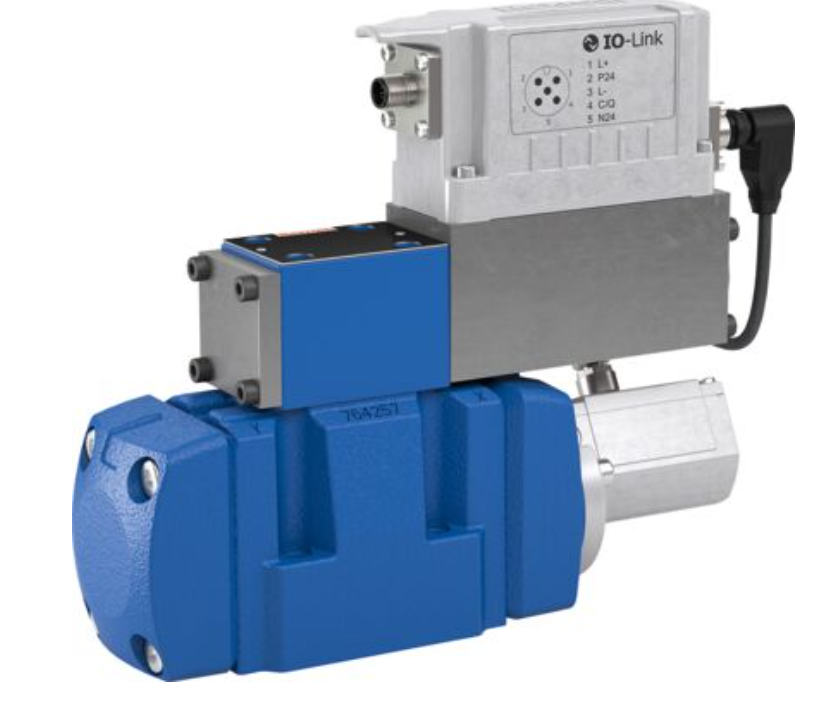

PROPORTIONAL DIRECTIONAL VALVE 4WRLE10V1-100L-4X/MXY/24A1 R901184008
Size 10, Symbol V1, Electrical with on-board electronics, 24 VDC
| Product attributes | |
| Connection diagram | ISO 4401-05-05-0-05 |
| Product family | 4WRLE |
| Operating pressure, max. [bar] | 350 |
| Max. flow [l/min] | 300 |
| Spool symbol | Symbol V1 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 100 |
| Size | 10 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value ±10 V |
| Hydraulic fluid | HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046) HL HLP |
| Seals | NBR |
| Weight [kg] | 8.86 |
