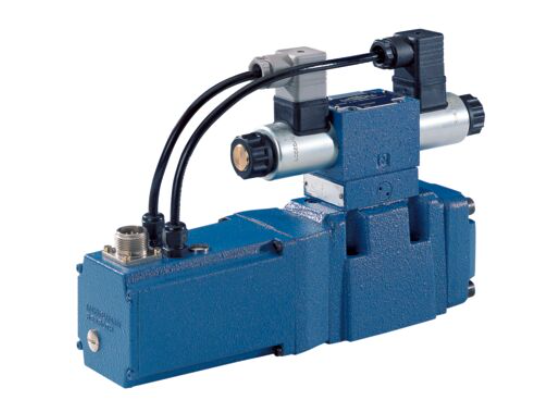

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150L-3X/6EG24ETK31/A1D3M R901432624
| Size 16, Symbol W6, Electrical with on-board electronics, 24 VDC Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol, high accuracy through internal piston position feedback Spool valve Pilot-operated Internal pilot oil supply, internal pilot oil return Characteristic curve, linear |
| Product attributes | |
| Connection diagram | ISO 4401-07-07-0-05 |
| Product family | 4WRKE |
| Operating pressure, max. [bar] | 350 |
| Max. flow [l/min] | 460 |
| Spool symbol | Symbol W6 |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 150 |
| Size | 16 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value ±10 V |
| Hydraulic fluid | HFC HL HLP HLPD HVLP HVLPD |
| Seals | NBR |
| Weight [kg] | 12.96 |
