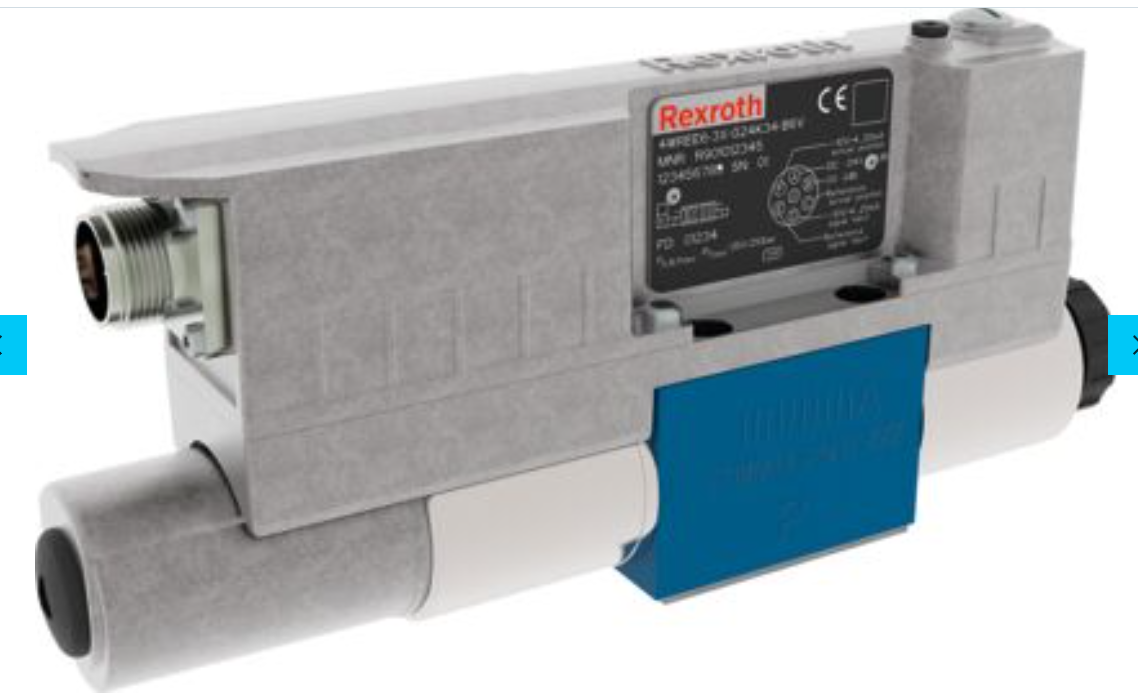

PROPORTIONAL DIRECTIONAL VALVE 4WREE6EA16-3X/V/24A1 R901513305
Size 6, Symbol EA, Electrical with on-board electronics, 24 VDC
| Product attributes | |
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | 4WREE6 |
| Installation position | any |
| Operating pressure, max. [bar] | 350 |
| Max. flow [l/min] | 80 |
| Spool symbol | Symbol EA |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 16 |
| Size | 6 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 2 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value 0…10 V |
| Conformity description | CE – Electromagnetic compatibility (EMC) directive 2014/30/EU UKCA – Electromagnetic compatibility (EMC) SI2016/1091 |
| Hydraulic fluid | HEES HEPG HETG HFDR HFDU HL HLP HLPD HVLP HVLPD |
| Seals | FKM |
| Weight [kg] | 2.12 |
