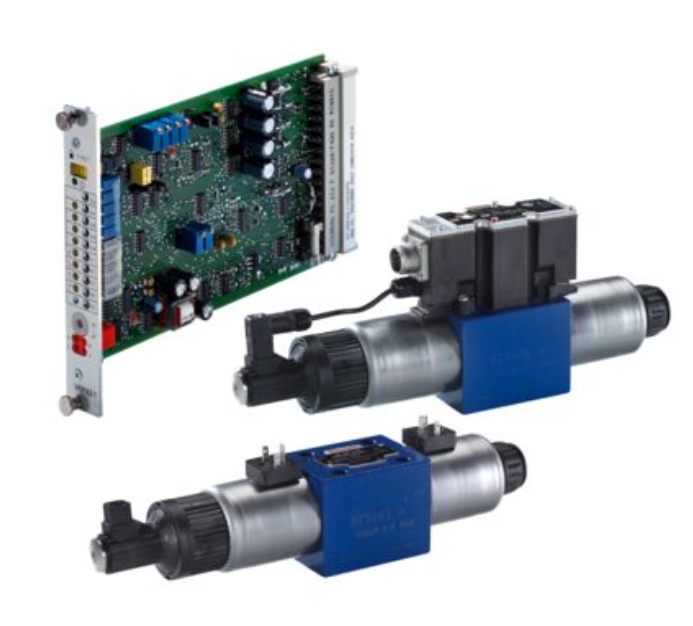

PROPORTIONAL DIRECTIONAL VALVE 4WREE6E32-2X/G24K31/A1V R900907114
| Size 6, Symbol E, Electrical with on-board electronics, 24 VDC Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback Spool valve Direct actuated Industrial high-performance hydraulic valve |
| Product attributes | |
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | 4WRE(E)6,10 |
| Operating pressure, max. [bar] | 315 |
| Max. flow [l/min] | 80 |
| Spool symbol | Symbol E |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 32 |
| Size | 6 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value ±10 V |
| Hydraulic fluid | HEES HEPG HETG HFDR HFDU HL HLP HLPD HVLP HVLPD |
| Seals | FKM |
| Weight [kg] | 2.44 |
