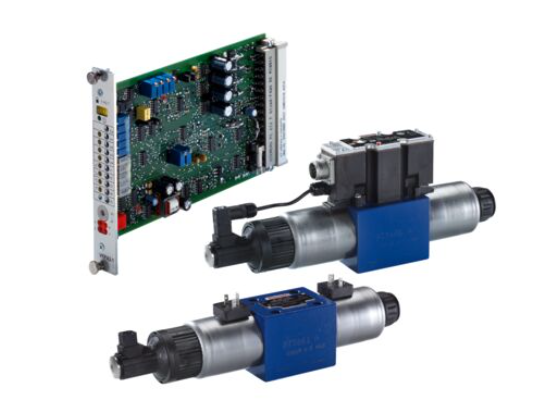

PROPORTIONAL DIRECTIONAL VALVE 4WREE10W50-2X/G24K31/A1V R900931371
| Size 10, Symbol W, Electrical with on-board electronics, 24 VDC Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback Spool valve Direct actuated Industrial high-performance hydraulic valve |
| Product attributes | |
| Connection diagram | ISO 4401-05-04-0-05 |
| Product family | 4WRE(E)6,10 |
| Operating pressure, max. [bar] | 315 |
| Max. flow [l/min] | 180 |
| Spool symbol | Symbol W |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 50 |
| Size | 10 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value ±10 V |
| Hydraulic fluid | HFDR HFDU HL HLP HLPD HVLP HVLPD HEES HEPG HETG |
| Seals | FKM |
| Weight [kg] | 6.26 |
