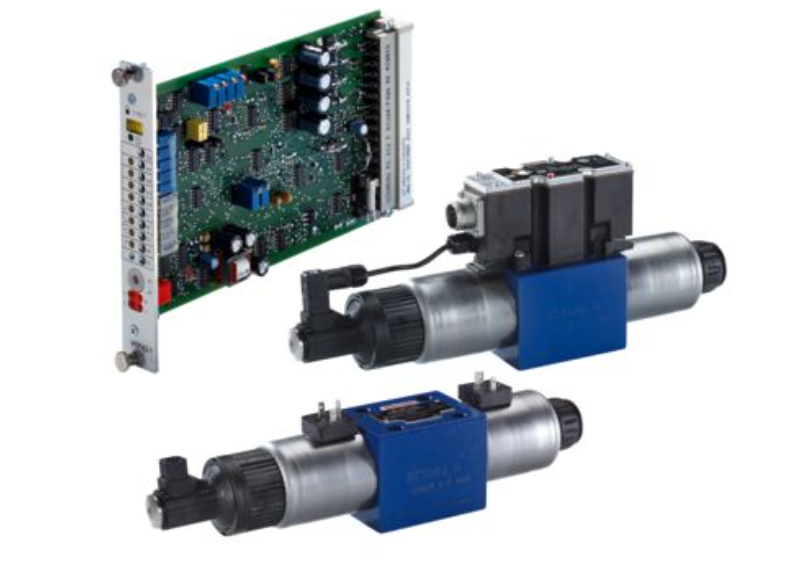

Size 10, Symbol V, Electrical with on-board electronics, 24 VDC
Industrial hydraulic valve in the high performance range; reliable control of the oil flow direction according to the hydraulic symbol; high accuracy through internal piston position feedback
Spool valve
Direct actuated
Industrial high-performance hydraulic valve

Product attributes    Connection diagram    ISO 4401-05-04-0-05
Product attributes    Product family    4WRE(E)6,10
Product attributes    Operating pressure, max. [bar]    315.0
Product attributes    Max. flow [l/min]    180.0
Product attributes    Spool symbol    Symbol V
Product attributes    Type of connection    Subplate mounting
Product attributes    Nominal flow [l/min]    50.0
Product attributes    Size    10
Product attributes    Type of actuation    Electrical with on-board electronics
Product attributes    Number of ports    4
Product attributes    Number of switching positions    3
Product attributes    Supply voltage    24 VDC
Product attributes    Electrical connector    Connector, 7-pole (6 + PE)
Product attributes    Electrical connection description    Connector 7-pole (6 + PE) according to EN 175201-804
Product attributes    Connectivity    Analog, command value ±10 V
Product attributes    Hydraulic fluid    HEES
Product attributes    Hydraulic fluid    HEPG
Product attributes    Hydraulic fluid    HETG
Product attributes    Hydraulic fluid    HFDR
Product attributes    Hydraulic fluid    HFDU
Product attributes    Hydraulic fluid    HL
Product attributes    Hydraulic fluid    HLP
Product attributes    Hydraulic fluid    HLPD
Product attributes    Hydraulic fluid    HVLP
Product attributes    Hydraulic fluid    HVLPD
Product attributes    Seals    FKM
Product attributes    Weight [kg]    6.22
