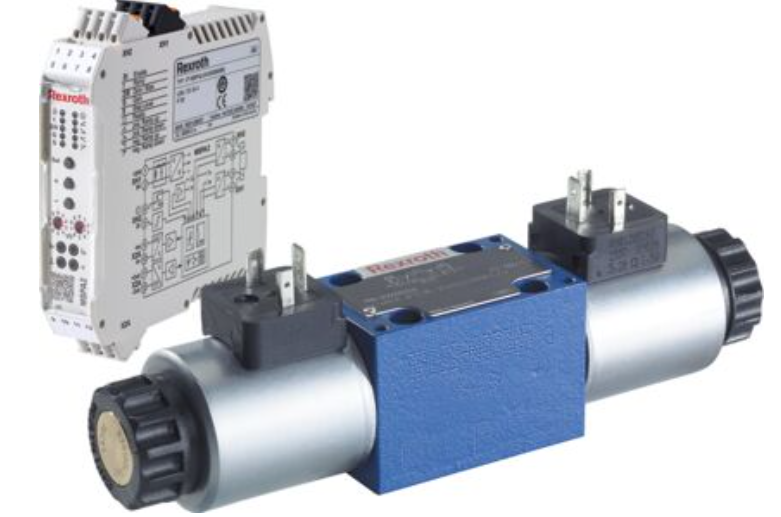

PROPORTIONAL DIRECTIONAL VALVE 4WRAE10W60-2X/G24N9K31/A1V R900900988
Size 10, Symbol W, Electrical with on-board electronics, 24 VDC. Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol. Spool valve. Direct actuated. With concealed auxiliary actuation
| Product attributes | |
| Connection diagram | ISO 4401-05-04-0-05 |
| Product family | 4WRA.6,10 |
| Operating pressure, max. [bar] | 315 |
| Max. flow [l/min] | 75 |
| Spool symbol | Symbol W |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 60 |
| Size | 10 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Connectivity | Analog, command value ±10 V |
| Conformity description | CE – Electromagnetic compatibility (EMC) directive 2014/30/EU UKCA – Electromagnetic compatibility (EMC) SI2016/1091 |
| Hydraulic fluid | HEES HEPG HETG HFDR HFDU HL HLP HLPD HVLP HVLPD |
| Seals | FKM |
| Weight [kg] | 6.2 |
