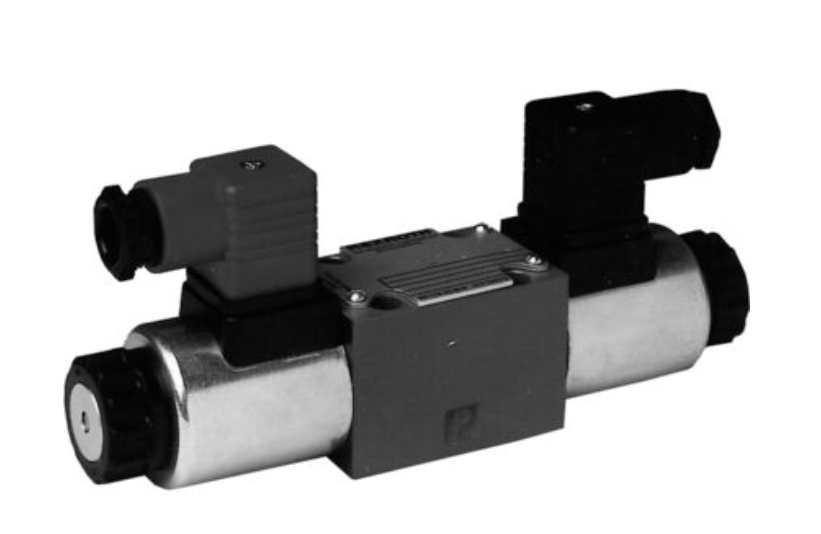

PROPORTIONAL DIRECTIONAL VALVE 4WRAB 6 W12-1X/G12N9K4/MR R978891597
Size 6, Symbol W, Electrical with external electronics
| Product attributes | |
| Connection diagram | ISO 4401-03-02-0-05 |
| Product family | 4WRA(E)B6 |
| Operating pressure, max. [bar] | 315 |
| Max. flow [l/min] | 30 |
| Spool symbol | Symbol W |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 12 |
| Size | 6 |
| Type of actuation | Electrical with external electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 12 VDC |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Hydraulic fluid | HFC HL HLP HLPD HVLP HVLPD |
| Seals | NBR |
| Weight [kg] | 2 |
